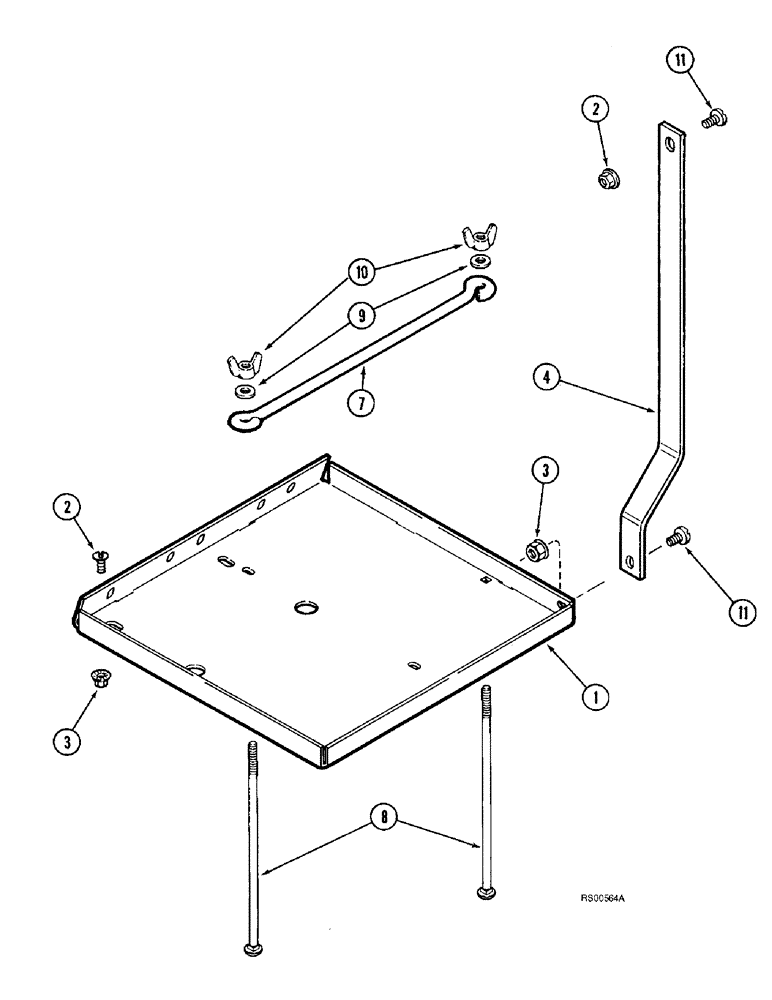

Запчасти Case IH 1680 (4-56) - BATTERY TRAY (06) - ELECTRICAL

1

194267C6

TRAY

- battery

1шт.

2

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

4

1977192C2

STRAP

SUPPORT - battery tray

1шт.

7

188116C1

CLAMP

- battery hold down

1шт.

8

411-5152

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT - carriage, 5/16 NC x 9-1/2 inch, grade 2

2шт.

9

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

10

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

2шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.
