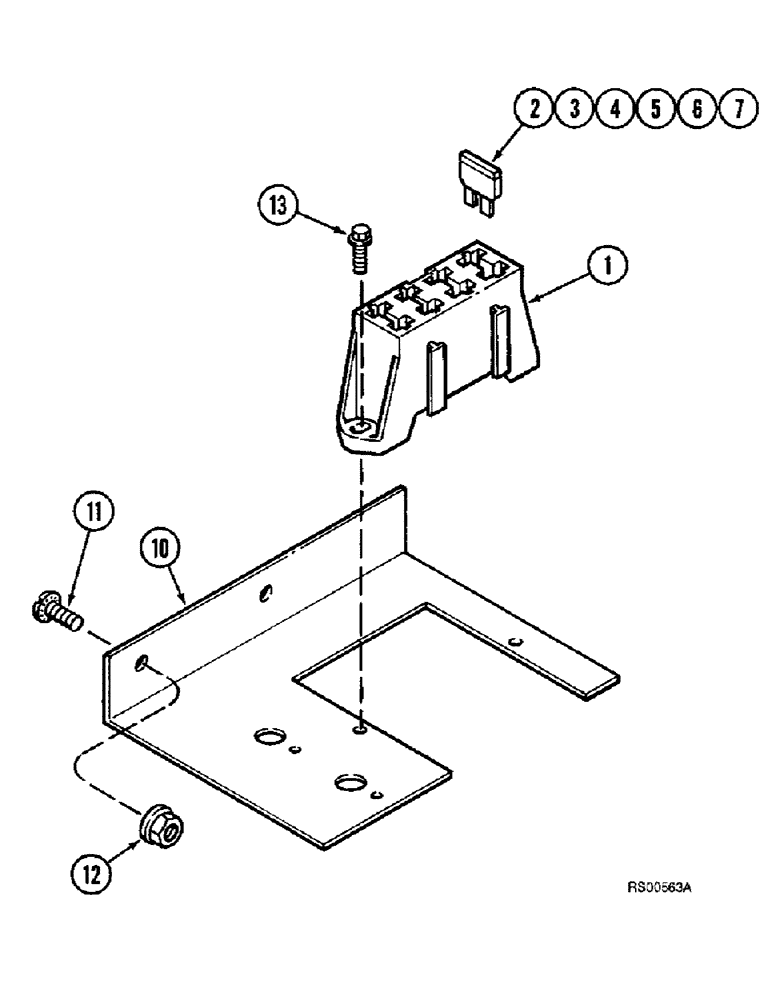

Запчасти Case IH 1680 (4-54) - FUSES AND FUSE BLOCK (06) - ELECTRICAL

1

245435C1

FUSE HOLDER

BLOCK ASSEMBLY - fuse, part of console harness, See Figure 4-06

3шт.

2

A149801

FUSE,Lt Blue, 15 Amp

- light blue, 15 ampere

2шт.

3

A149800

FUSE,10 Amp

- red, 10 ampere

6шт.

4

A149804

FUSE

- light green, 30 ampere

1шт.

5

A149798

FUSE

- tan, 5 ampere

2шт.

6

A149796

FUSE

- violet, 3 ampere

2шт.

10

1280162C3

SUPPORT

- fuse block

1шт.

11

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

2шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

13

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.
