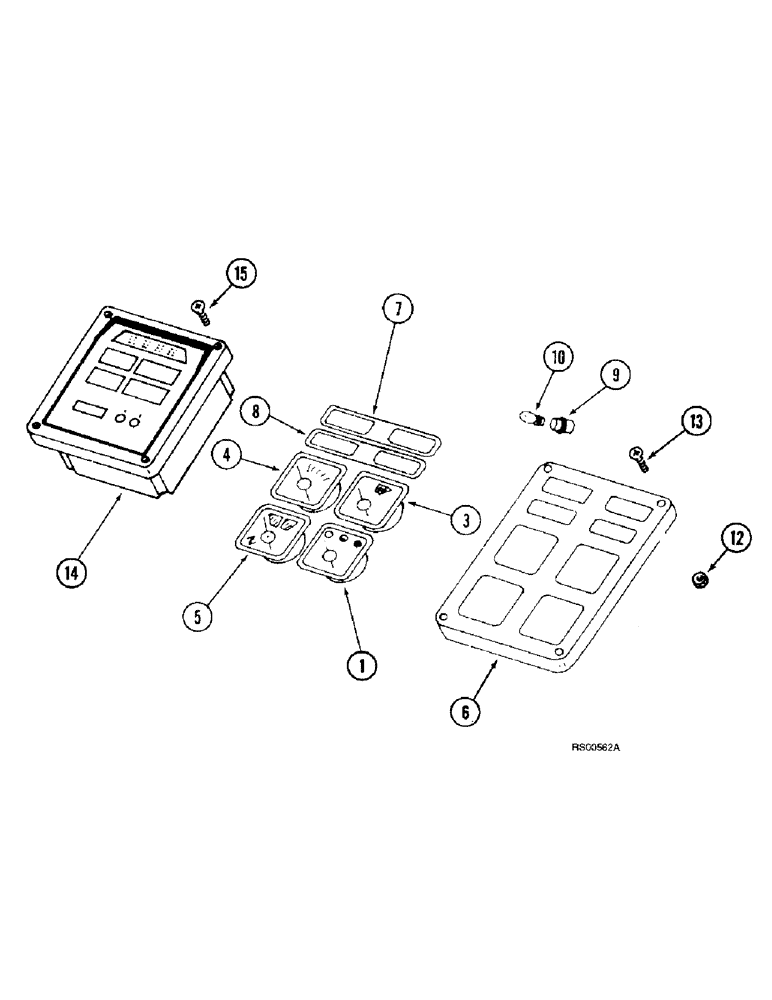

Запчасти Case IH 1680 (4-52) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL

198067C91

ELECTRICAL GAUGE

CLUSTER ASSEMBLY - instrument gauges, Includes: Ref. 1 - 10

1шт.

1

121604C2

ELECTRICAL GAUGE

GAUGE - fuel, includes adapter

1шт.

3

121605C3

ELECTRICAL GAUGE

GAUGE - coolant temperature, includes adapter

1шт.

4

121606C2

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

5

121607C2

ELECTRICAL GAUGE

GAUGE - voltmeter, includes adapter

1шт.

6

121608C1

GASKET

BEZEL - instrument cluster

1шт.

7

187596C1

LENS

LENS - warning lamp, oil pressure, brake, temperature, amperes

1шт.

8

187597C1

LENS

LENS - warning lamp, shaker elevator

1шт.

9

121611C1

SOCKET

SOCKET - bulb

8шт.

10

W10478

LAMP

BULB - lamp, No. 194

8шт.

12

445357

SPRING NUT,J, #10-16

NUT - J-shape, special, 10-12

4шт.

13

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

4шт.

14

1987322C2

TACHOMETER

TACHOMETER - engine, replaces 245249C1 tachometer

1шт.

14

1935114C2

REMAN-ELECT GAUGE

Remanufactured Tachometer

1шт.

14

1935113C2

CORE GAUGE ELECT

Core-Electrical Gauge Return Number, Tachometer

1шт.

15

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

4шт.
