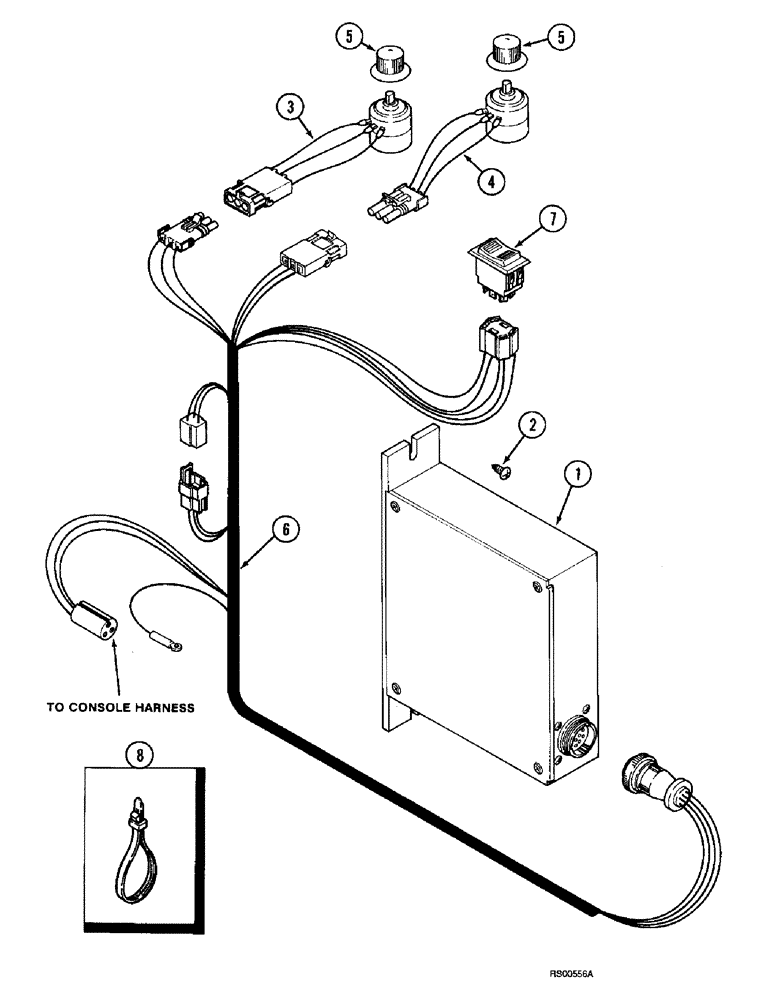

Запчасти Case IH 1680 (4-40) - AUTOMATIC HEADER HEIGHT CONTROL HARNESS (06) - ELECTRICAL

1

91479C2

CASE

KIT - module, automatic header height control, replaces 91479C91), Includes: Ref. 2

1шт.

2

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.

3

245385C1

POTENTIOMETER,1000 Ohm

- single, 1K, header height control

1шт.

4

245925C1

POTENTIOMETER,1000 Ohm

Single, Sensitivity Control 1000 Ohm

1шт.

5

1345235C1

BUTTON

KNOB - control

2шт.

6

245924C1

HARNESS

- automatic header height

1шт.

7

245012C1

SWITCH

- rocker, ON-OFF

1шт.

8

702093C1

CABLE TIE

STRAP - tie

1шт.
