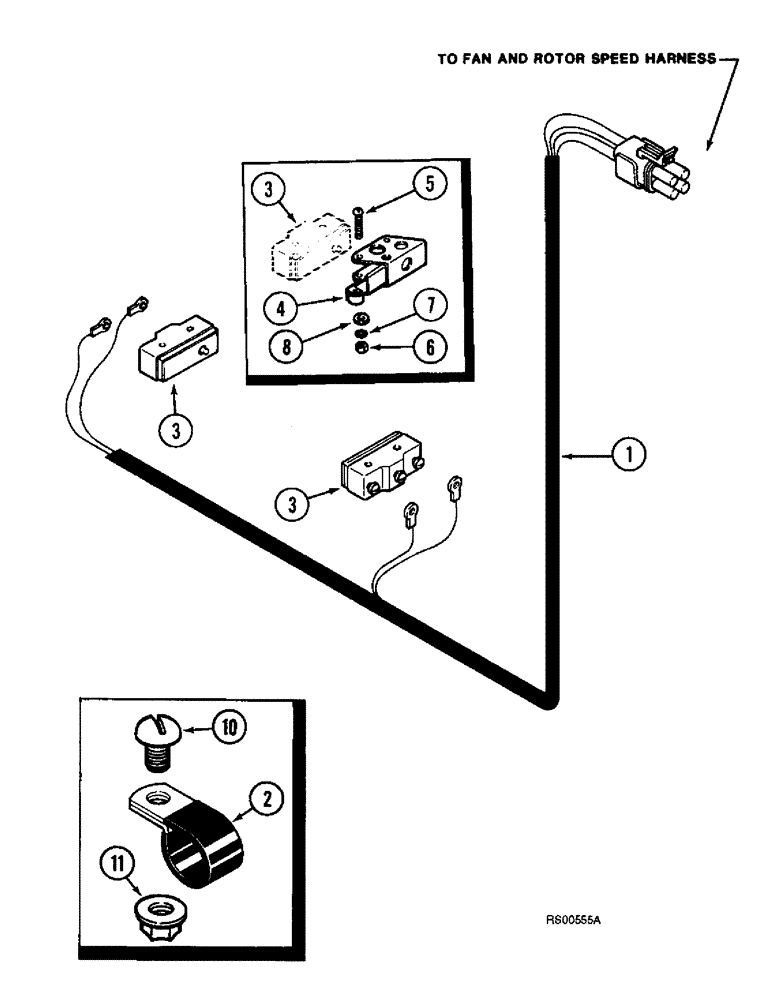

Запчасти Case IH 1680 (4-38) - ROTOR LIMIT SWITCH HARNESS (06) - ELECTRICAL

1

245240C1

WIRE HARNESS

HARNESS - rotor limit switch

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

3

186057C1

SWITCH

- rotor limit

2шт.

4

128298A1

IGNITION SWITCH

SWITCH - actuator, rotor limit

2шт.

5

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch

4шт.

6

225-14106

NUT,#6-32

4шт.

7

138526

LOCK WASHER

- internal tooth lock, special, No. 6

4шт.

8

95-81108

WASHER,#6

- flat, 5/32 x 3/8 x 1/32 inch

4шт.

10

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

11

231-5146

FLANGE NUT,3/8"-16

1шт.
