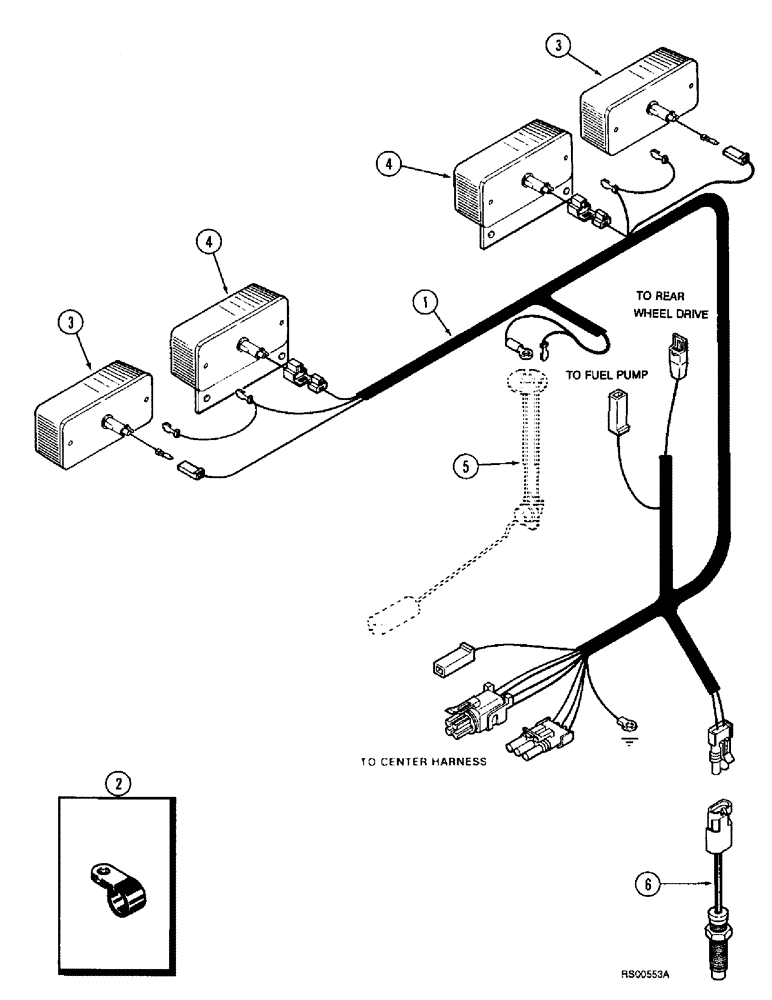

Запчасти Case IH 1680 (4-34) - MAIN REAR HARNESS (06) - ELECTRICAL

1

245228C2

HARNESS

- rear main

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

1шт.

3

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list Figure 4-36

2шт.

4

216044C92

LAMP

ASSEMBLY - stop. parts list Figure 4-36

2шт.

5

198024C1

FUEL GAUGE

SENSOR - fuel level, See Figure 3-16

1шт.

6

1252494C2

TRANSMITTER

SENSOR - engine RPM

1шт.
