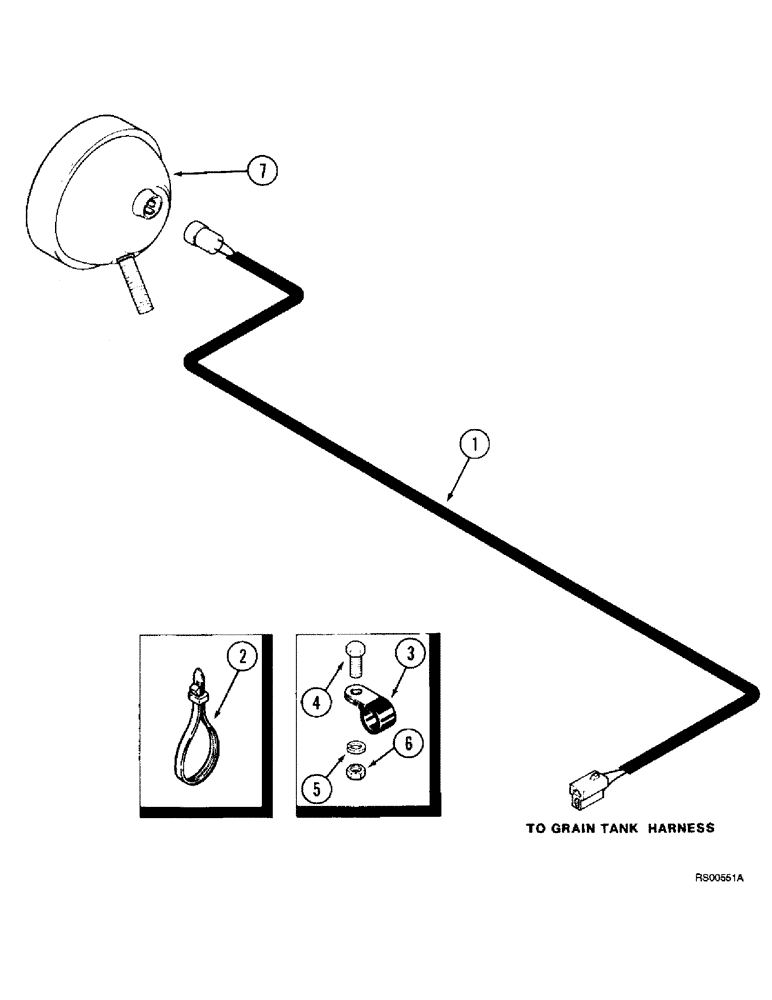

Запчасти Case IH 1680 (4-30) - UNLOADER LAMP HARNESS (06) - ELECTRICAL

1

91828C1

HARNESS

- unloader lamp

1шт.

2

702093C1

CABLE TIE

STRAP - tie

1шт.

3

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- P-type

3шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

7

245954C91

LAMP

ASSEMBLY - unloader, part list Figure 4-32

1шт.
