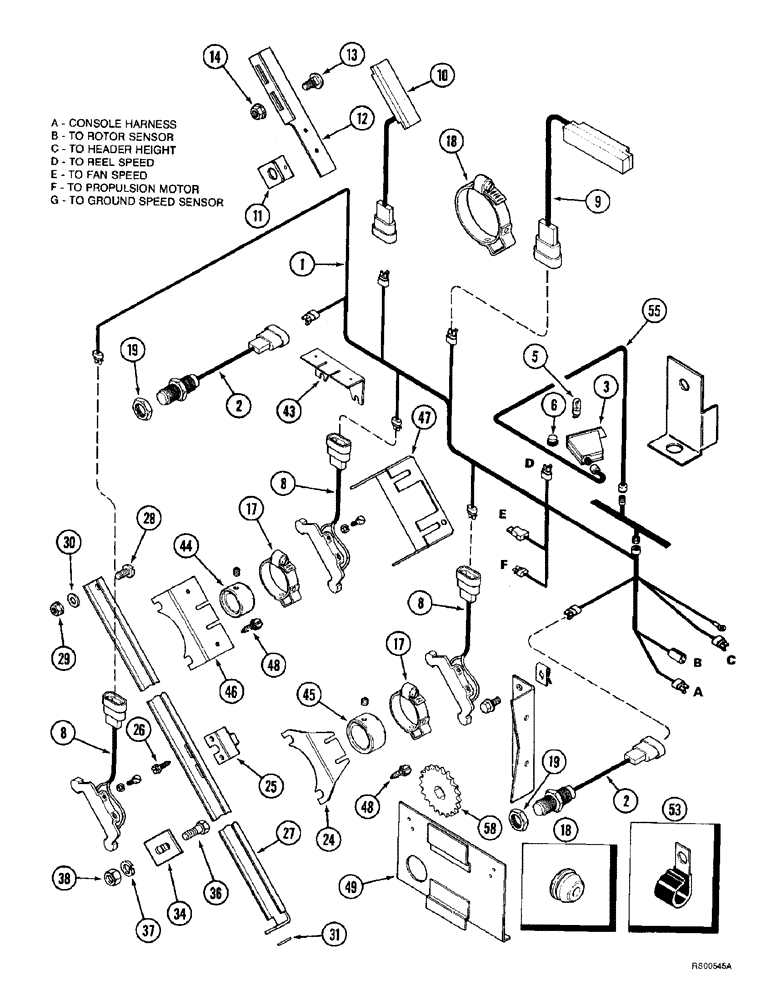

Запчасти Case IH 1680 (4-18) - SHAFT SPEED MONITOR CONTROL HARNESS, COMBINES WITH STRAW CHOPPER (06) - ELECTRICAL

1

245238C2

HARNESS

- shaft speed rear

1шт.

2

245193C2

SENSOR

- transducer, for straw spreader and feeder

2шт.

3

245275C91

CASE ASSY.

MONITOR ASSEMBLY - shaft speed, includes decal, Includes: Ref. 5 & 6

1шт.

3

1935072C1

REMAN-ELECT MONITOR

1680 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0045689) (NORTH AMERICA), MONITOR ASSEMBLY, shaft speed, COMBINES W/ STRAW CHOPPER (1/86-12/92)

1шт.

3

1935071C1

CORE-MONITOR

Return Number

1шт.

5

A48888

BULB

- lamp, No. 73, 14 volt

1шт.

6

195359A1

SHUTTER

- audible alarm

1шт.

8

245365C1

TRANSMITTER

SENSOR - monitor control, for rotary air screen, tailings auger, clean grain sensor

3шт.

9

245410C1

TRANSMITTER

SENSOR - monitor control, for straw chopper

1шт.

10

245364C1

SWITCH

- monitor control, for shoe

1шт.

11

187996C1

MAGNET

- shoe sensor

1шт.

12

187998C1

SUPPORT

- shoe transmitter

1шт.

13

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

17

178800C1

CLAMP

- sensor, for grain and tailings auger

2шт.

18

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET - sensor, for straw chopper

1шт.

19

84116C1

NUT

- hex, self-locking, 3/4 inch NC

2шт.

24

183869C3

SUPPORT

BRACKET - sensor, clean grain

1шт.

25

196987C1

MAGNET

- sensor, for rotary air screen

1шт.

26

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - self-tapping, pan slotted, No. 8-18 x 1/2 inch

2шт.

27

1329865C1

CHANNEL

- sensor mounting, rotary air screen

1шт.

28

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

3шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

30

179454C1

RUBBER WASHER

- flat, rubber, special

1шт.

31

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

34

1301560C1

SUPPORT

BRACKET - mounting, rotary air screen sensor

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

37

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

43

187615C3

SUPPORT

BRACKET - tailings sensor

1шт.

44

1301135C1

COLLAR

- tailings elevator shaft

1шт.

45

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

- locking, clean grain auger

1шт.

46

183869C3

SUPPORT

BRACKET - sensor

1шт.

47

181208C3

SUPPORT

COVER - sensor

1шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, hex washer head, 1/4-14 x 1/2 inch

1шт.

49

187642C2

COVER

- clean grain auger sensor

1шт.

53

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

1шт.

53

362666R1

CLIP

CLAMP - retaining

1шт.

53

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

- retaining

1шт.

53

370383R1

CLIP

CLAMP - P-type

1шт.

55

245242C1

HARNESS

- shaft speed front

1шт.

58

1317973C2

SPROCKET ASSY.

SPROCKET - feeder sensor, combines without rock trap or feeder reverser

1шт.
