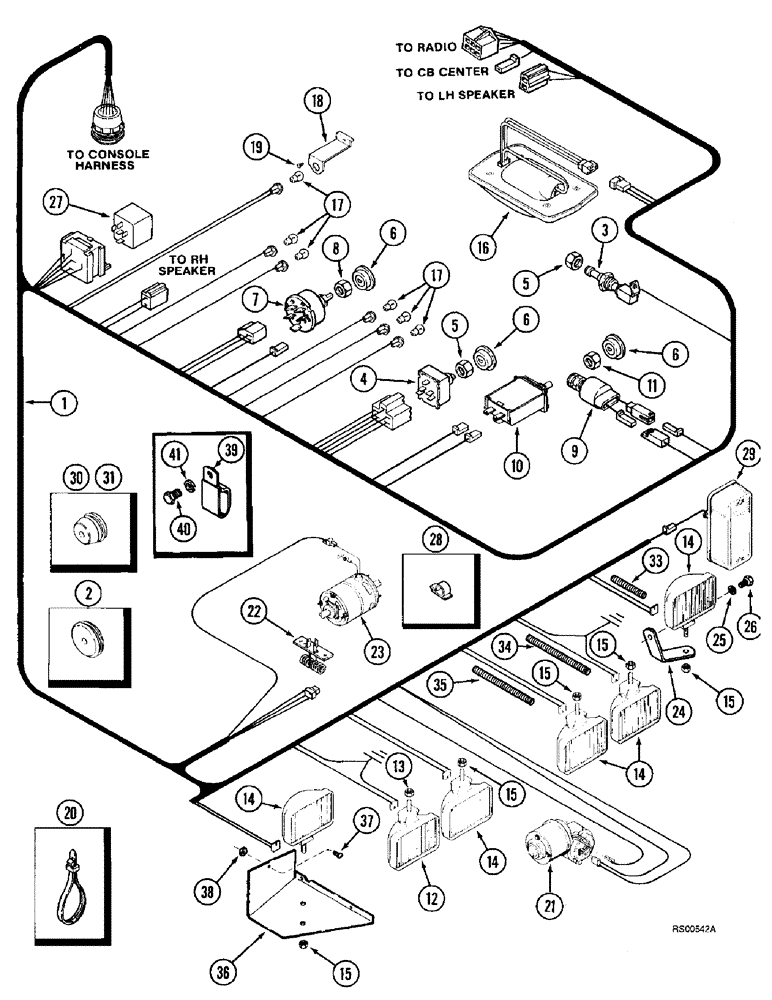

Запчасти Case IH 1680 (4-12) - CAB ROOF HARNESS (06) - ELECTRICAL

1

84311C2

HARNESS

- cab roof

1шт.

2

83931C1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome lamp control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex, jam, 7/16-28 NF

1шт.

6

111282C1

KNOB

- control, blower, wiper and thermostat

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex, jam, 7/16-28 NF

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex, jam, 7/16-28 NF

2шт.

12

91666C91

INTERIOR LIGHT

LAMP - flood, 40 x 7 Halogen

1шт.

13

325-108

NUT,1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

14

245897C91

LAMP, WORK

LAMP - 80 x 30 Halogen, work lamp and outer flood lamp

5шт.

15

325-108

NUT,1/2"-13, G5

- hex, jam, 1/2 inch NC

5шт.

16

245659C91

LAMP

ASSEMBLY - dome, parts list Figure 4-74

1шт.

17

A14553

BULB

- No. 57, cab instrument panel backlamp and warning lamp

6шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

5шт.

19

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - self-tapping, pan slotted, No. 8-18 x 1/2 inch

5шт.

20

111619C1

STRAP

- tie

6шт.

21

109740A1

WIPER MOTOR

MOTOR ASSEMBLY - wiper, includes mounting bracket, See Figure 4-76, replaces 1276130C92 motor

1шт.

22

1255876C1

RESISTOR

- blower motor

1шт.

23

190333A1

MOTOR, ELECTRIC,12V

MOTOR - blower, replaces 142990C2 motor

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1680 Prior To S/N JJC0045689

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1281876C1

BRACKET

- mounting, outer flood lamp

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

26

326-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

1шт.

27

1983394C2

RELAY

- mini, 12 volt, air conditioning

1шт.

28

169850C2

CABLE CLIP

CLIP, CABLE - retaining (Plastic)

6шт.

29

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list Figure 4-36

1шт.

30

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- 1 inch ID, deck harness, right-hand

1шт.

30

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 1/2 inch ID, lamp harness right-hand

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID, lamp harness

1шт.

33

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 89 mm (3-1/2 inch) long, cut from R43250 bulk conduit, see below

2шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 178 mm (7 inch) long, cut from R43250 bulk conduit, see below

2шт.

35

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 229 mm (9 inch) long, cut from R43250 bulk conduit, see below

2шт.

36

1283449C3

BRACKET

- lamp mounting, includes shield

1шт.

37

436746

SCREW

- machine, special, No. 10 NF x 1/4 inch

2шт.

38

225-14110

NUT,#10-24

1шт.

39

371036R1

CLIP

CLAMP - retaining

1шт.

40

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

R43250

CONDUIT

- harness, 50 foot roll

1шт.
