(4-10) - CONSOLE BACK LIGHTING HARNESS

Запчасти Case IH 1680 (4-10) - CONSOLE BACK LIGHTING HARNESS (06) - ELECTRICAL

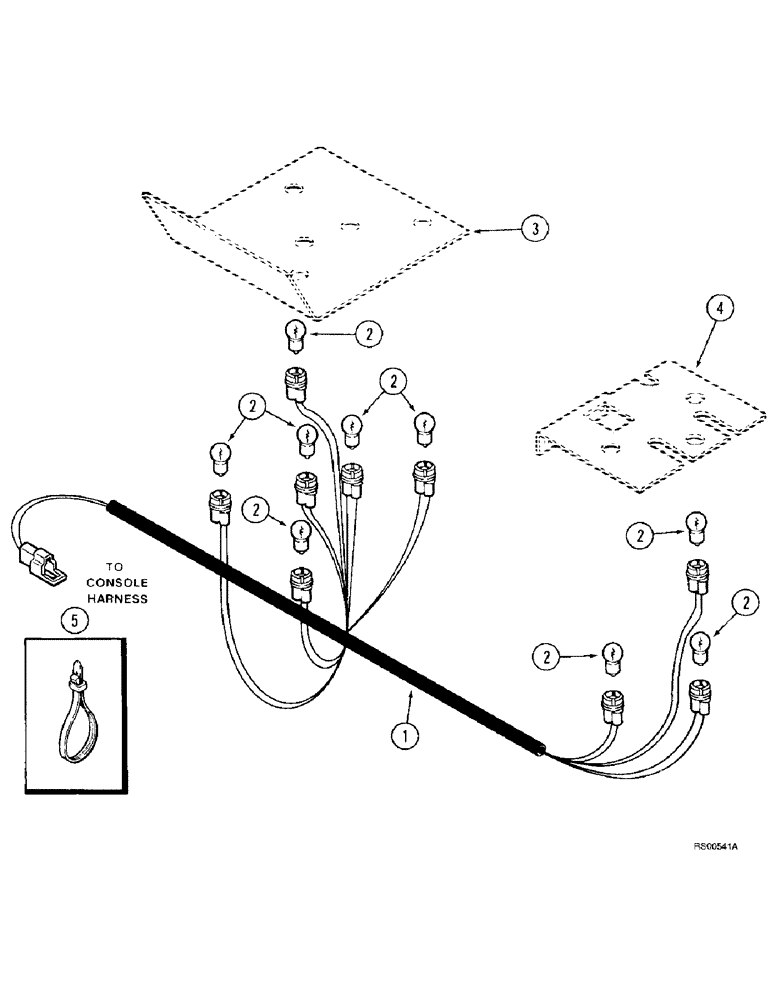

Схема запчастей Case IH 1680 - (4-10) - CONSOLE BACK LIGHTING HARNESS (06) - ELECTRICAL
2
4
1
3
2
2
5
2
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245231C1

HARNESS

- console backlighting

1шт.

2

A14553

BULB

- No. 57, cab instrument panel backlamp and warning lamp

9шт.

3

1280424C1

BRACKET

SUPPORT - rear lamp machine control, See Figure 9G-02

1шт.

4

1280422C1

BRACKET

SUPPORT - rear lamp front control, See Figure 9G-02

1шт.

5

702093C1

CABLE TIE

STRAP - tie

1шт.
