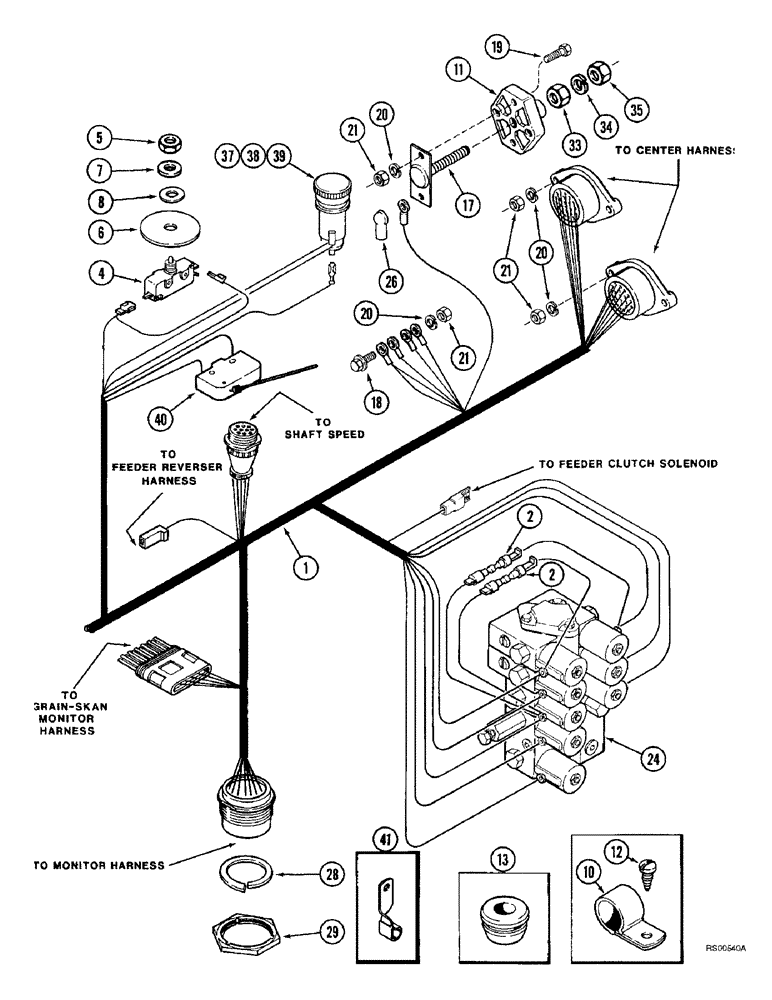

Запчасти Case IH 1680 (4-08) - CONSOLE HARNESS, LEFT-HAND CONSOLE (06) - ELECTRICAL

1

91726C4

HARNESS

- console

1шт.

2

548239R2

RECTIFIER

DIODE - nonlocking, console harness

2шт.

4

633643R91

SWITCH

- parking brake warning lamp

1шт.

5

A39888

NUT

- hex, 3/8-32

1шт.

6

166817C1

WASHER

- special

1шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

8

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, console harness front

1шт.

10

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

- retaining

4шт.

11

468647C2

BLOCK ASSY.

BLOCK - junction

1шт.

12

261-2478

SELF-TAP SCREW,1/4 -20x1/2 F Pan

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 inch ID, console harness

1шт.

17

1964561C1

BAR

- junction block buss, replaces 468651C1 bar

1шт.

18

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

19

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

21

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

10шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - control, See Figure 8-28 or 8-30

1шт.

26

399470R1

BOOT

- cable

1шт.

28

490691C1

LOCK WASHER,#18 Shell

- lock, harness connector

1шт.

29

490692C1

LOCK NUT,#18 Shell

- hex, 1-1/2 inch, harness connector

1шт.

33

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

37

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigar, 12 volt, Includes: Ref. 38 & 39

1шт.

38

378781R1

LIGHTER, CIGARETTE

ELEMENT - pop up, lighter

1шт.

39

NSS

NOT SOLD SEPARAT

SOCKET - lighter

1шт.

40

1310827C2

SWITCH

- lockout (Used with 2 speed transmission)

1шт.

41

363660R1

CLIP

- twisted, console harness

1шт.
