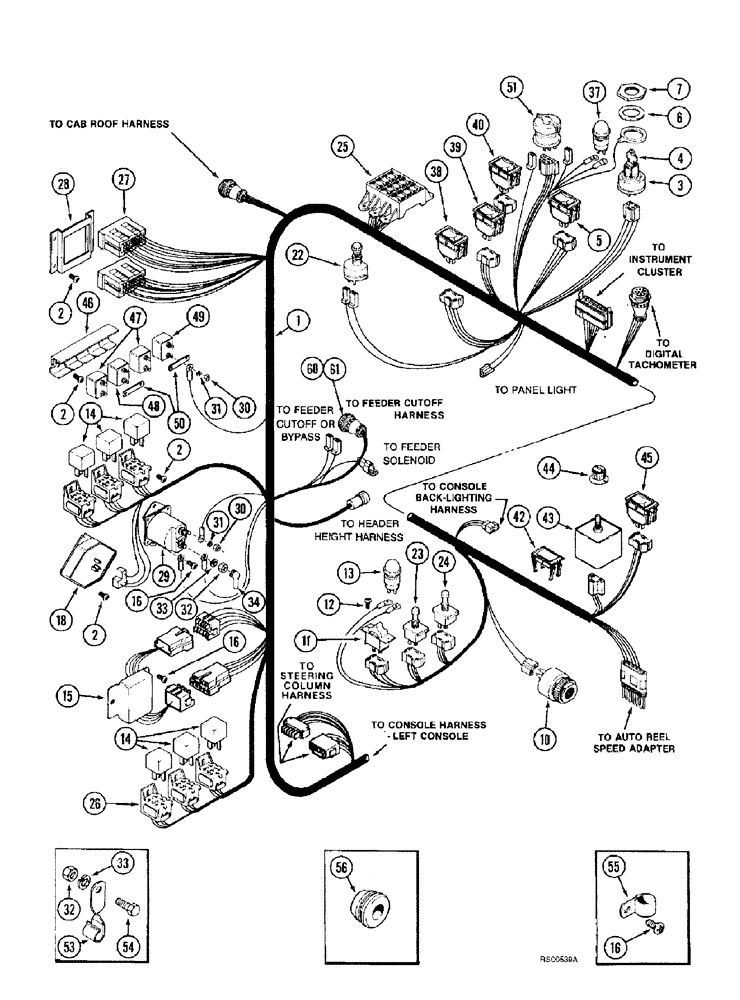

Запчасти Case IH 1680 (4-06) - CONSOLE HARNESS, RIGHT-HAND CONSOLE (06) - ELECTRICAL

1

91726C4

HARNESS

- console

1шт.

2

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10 NC x 1/2 inch

8шт.

3

1252476C1

SWITCH

- ignition

1шт.

4

131313C1

KEY, IGNITION

KEY - ignition

1шт.

5

245219C1

SWITCH

- rotor speed

1шт.

6

375431R1

LOCK WASHER

- flat, special

1шт.

7

365502R1

NUT

- flat hex, special

1шт.

10

1546441C1

BUZZER

ALARM - audible

1шт.

11

1301175C1

SWITCH

- reel lift control

1шт.

12

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval Phillips, No. 6 NC x 5/8 inch

2шт.

13

453453C1

SWITCH

- push button, feeder reverser, See Figure 4-48

1шт.

14

1983394C2

RELAY

- mini, 12 volt

6шт.

15

187609C1

RECTIFIER

- diode

1шт.

16

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self tapping, hex head, 1/4 NC x 1/2 inch

6шт.

18

1994871C1

GOVERNOR

RECTIFIER - central load dump, replaces 245835C1 suppressor

1шт.

22

121705C91

SWITCH

- dimmer, panel

1шт.

23

245633C1

IGNITION SWITCH

SWITCH - feeder clutch, without reverser

1шт.

23

245634C2

SWITCH

- toggle, feeder clutch, with reverser

1шт.

24

245632C2

SWITCH

- toggle, separator clutch

1шт.

25

REF

INSTRUCTION

BLOCK - fuse, See Figure 4-54

1шт.

26

NSS

NOT SOLD SEPARAT

SOCKET - relay, order 91726C4 harness, Ref. 1 above

6шт.

27

NSS

NOT SOLD SEPARAT

MODULE - feedback, order 91726C4, item 1 above

2шт.

28

NSS

NOT SOLD SEPARAT

BRACKET - feed back module mounting, order 91726C4, Ref. 1 above

1шт.

29

107655C1

SOLENOID SWITCH

SWITCH - magnetic, cab power

1шт.

30

225-14210

NUT,#10-32

9шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

34

399470R1

BOOT

- cable

2шт.

37

453453C1

SWITCH

- push button, ether start

1шт.

38

245012C1

SWITCH

- rocker, 4 wheel drive, if used

1шт.

39

245012C1

SWITCH

- rocker, variable propulsion

1шт.

For combines with two speed propulsion motor.

1шт.

40

245219C1

SWITCH

- rotor speed, fan speed

1шт.

42

245334C1

PLUG

- panel switch cover

1шт.

43

245653C2

SWITCH

- reel speed manual

1шт.

44

1345235C1

BUTTON

KNOB - control, reel speed

1шт.

45

245509C1

SWITCH

- reel, fore and aft, if used

1шт.

46

245871C1

BRACKET

- circuit breaker

1шт.

47

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere, worklight circuit

2шт.

48

245762C1

CIRCUIT-BREAKER,15A

BREAKER - circuit, 15 ampere, rotor circuit

1шт.

49

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 ampere, cab circuit

1шт.

50

245861C1

BAR

- breaker bus

2шт.

51

107200C2

LIGHT SWITCH

SWITCH - lamp, headlight

1шт.

53

363660R1

CLIP

- twisted, console harness

1шт.

54

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

55

299277C91

CLIP

CLAMP - P-type

2шт.

56

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- rubber, console harness, Replaces 92065C1

1шт.

60

225136C1

SOCKET/RECEPTACLE

CONNECTOR - type GC

1шт.

61

225154C1

SOCKET/RECEPTACLE

SHELL - type GY

1шт.
