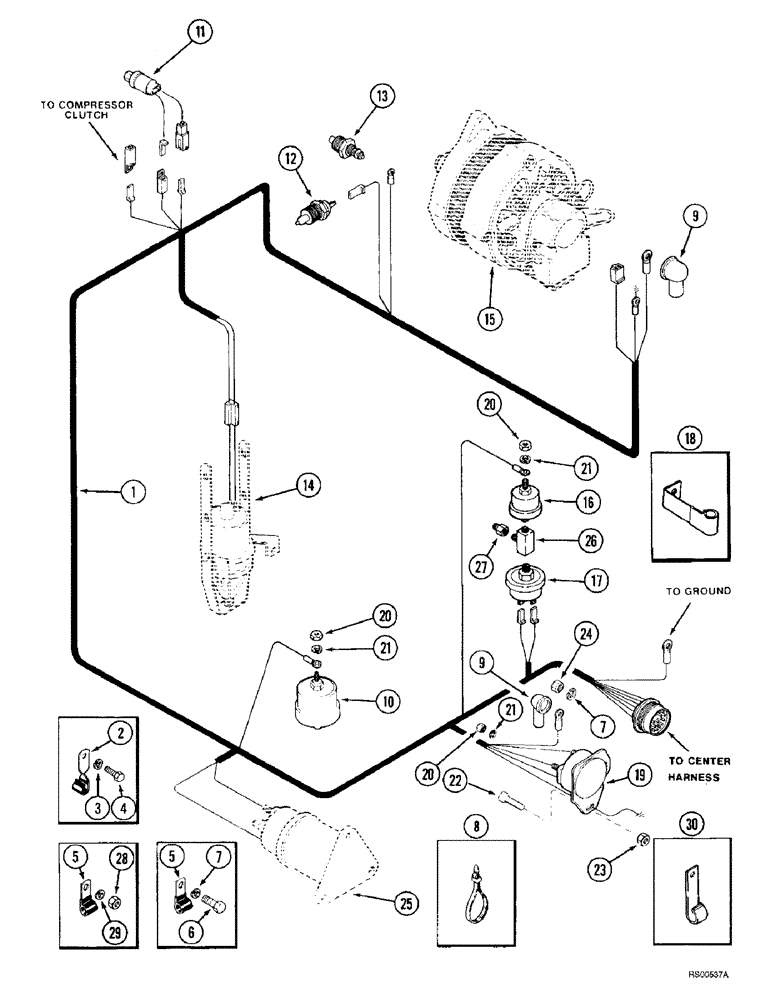

Запчасти Case IH 1680 (4-02) - ENGINE HARNESS (06) - ELECTRICAL

1

245934C3

HARNESS

ASSEMBLY - engine

1шт.

2

670368C1

CLIP

- engine block, rear

1шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

5

362123R1

CLIP

- engine harness

3шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

702093C1

CABLE TIE

STRAP - tie

1шт.

9

399470R1

BOOT

- cable

2шт.

10

1-2227T2

SENDER UNIT

SWITCH - oil pressure

1шт.

11

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

12

130861C2

SWITCH

Temperature

1шт.

13

121756C2

SENSOR

Temperature sending unit

1шт.

14

185552A1

SOLENOID

- ether injection, 12 volt, See Figure 2-18, item 2

1шт.

15

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, See Figure 4-64, 4-66 or 4-69 for correct alternator assembly

1шт.

16

392249R92

SWITCH

- low engine oil pressure light

1шт.

17

131424C1

SWITCH

- pressure header lift

1шт.

18

399657R1

CLIP

- engine harness, front cover

1шт.

19

121613C1

IGNITION SWITCH

SWITCH - magnetic relay

1шт.

20

225-14210

NUT,#10-32

3шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

22

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

REF

INSTRUCTION

SWITCH - starter solenoid, See Figure 4-72

1шт.

26

217-55

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- pipe, 1/8 inch PT

1шт.

27

217-9

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

VALVE - 1/8 inch PT

1шт.

28

425-106

NUT,3/8"-16, Cl 5

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

269980R1

CLIP

- engine harness center

1шт.
