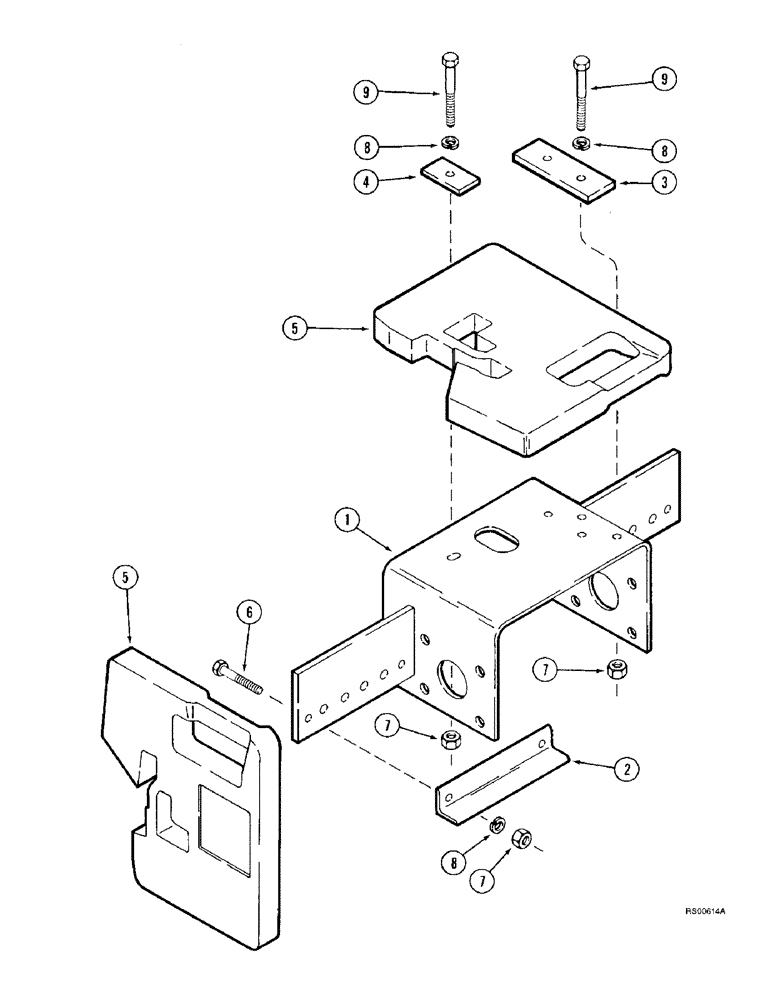

Запчасти Case IH 1680 (5-76) - STEERING AXLE WEIGHTS (04) - STEERING

1

185365C1

SUPPORT

- weight

1шт.

Do not use weights and brackets on machines equipped with power guide axle.

1шт.

2

1308872C1

BRACKET

ANGLE - weight retaining

2шт.

3

178434C1

CLAMP

- weight

1шт.

4

561838R1

PLATE

CLAMP - weight

1шт.

5

NSS

NOT SOLD SEPARAT

WEIGHT - axle, 100 pound, order from Machinery Price List

1шт.

6

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

9

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

3шт.
