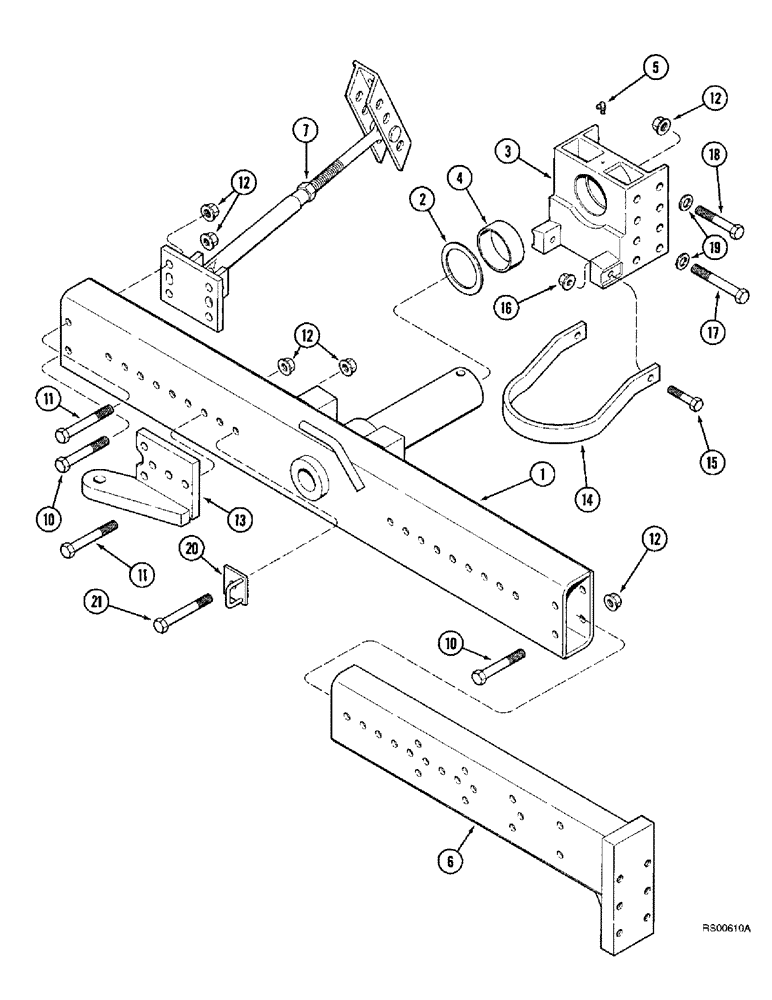

Запчасти Case IH 1680 (5-68) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE, P.I.N. JJC0044001 AND AFTER (04) - STEERING

1

1968991C1

AXLE

- adjustable, 108 to 144 inch

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

4шт.

3

186599C93

SUPPORT

ASSEMBLY - axle pivot, Includes: Ref. 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot

2шт.

5

219-404

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING - grease, 45°, 3/16 drive type x 13/16"

2шт.

6

1968992C1

AXLE

EXTENSION - axle

2шт.

7

REF

INSTRUCTION

SUPPORT ASSEMBLY - stay, axle, See Figure 5-67

2шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

10шт.

11

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

4шт.

12

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

23шт.

13

1968993C1

SUPPORT

- steering bracket

1шт.

14

1979114C1

STRAP

- tow

1шт.

15

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

16

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

17

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

18

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

6шт.

19

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

20

195618A1

CLAMP

- P-type, special, 1-7/8 inch ID

1шт.

21

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.
