(5-54) - WHEEL MOTOR, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001

Запчасти Case IH 1680 (5-54) - WHEEL MOTOR, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING

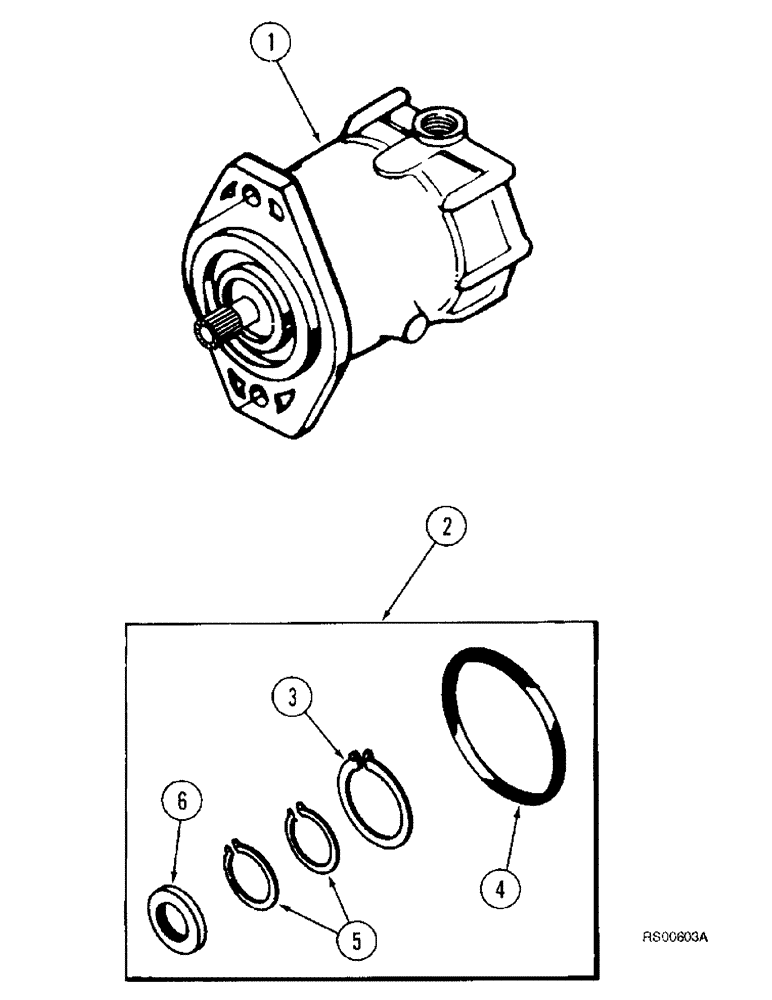

Схема запчастей Case IH 1680 - (5-54) - WHEEL MOTOR, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING
4
5
2
6
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1310556C91

MOTOR, ELECTRIC

MOTOR ASSEMBLY - wheel, Includes: Ref. 2 - 6

2шт.

2

1272263C1

KIT

- repair, wheel motor, Includes: Ref. 3 - 6

2шт.

3

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 4 ID x 3/32 inch wide

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.
