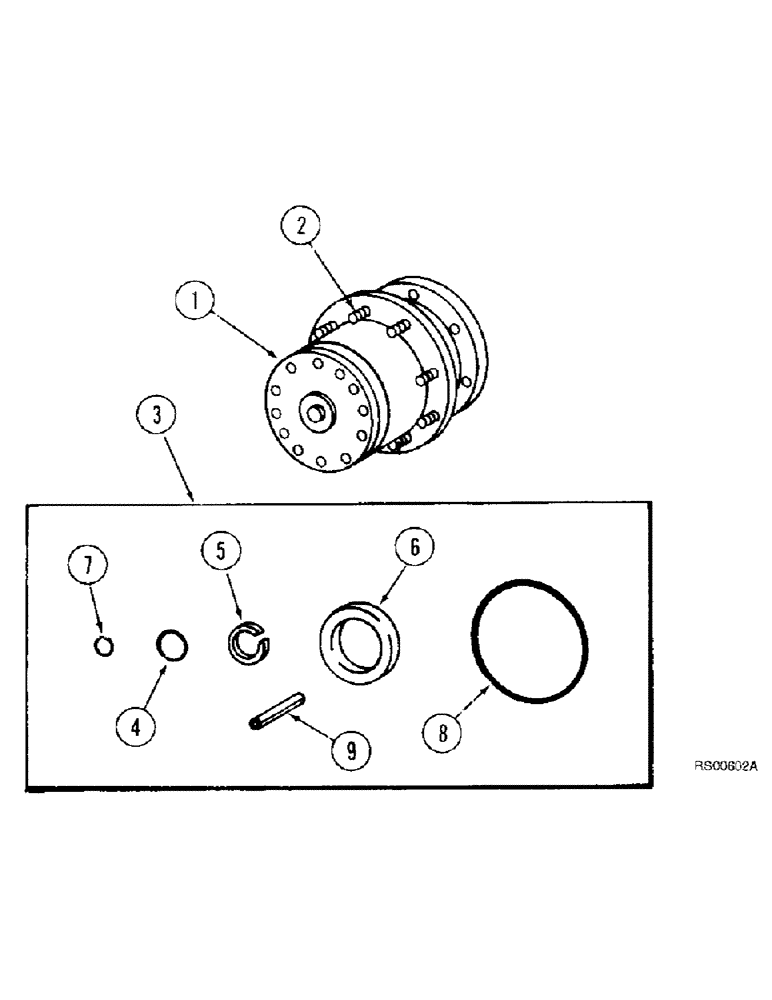

Запчасти Case IH 1680 (5-52) - PLANETARY GEAR HOUSING, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING

1

1324465C91

HOUSING

ASSEMBLY - planetary gear, Includes: Ref. 2 - 9

2шт.

2

1310563C1

STUD,5/8" - 18 x 2.15"

- headed

18шт.

3

1319387C1

SEAL KIT

- repair, planetary gear housing, Includes: Ref 4 - 9

2шт.

4

NSS

NOT SOLD SEPARAT

O-RING - cover cap

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - spindle

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - disconnector rod

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - ring gear

2шт.

9

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.
