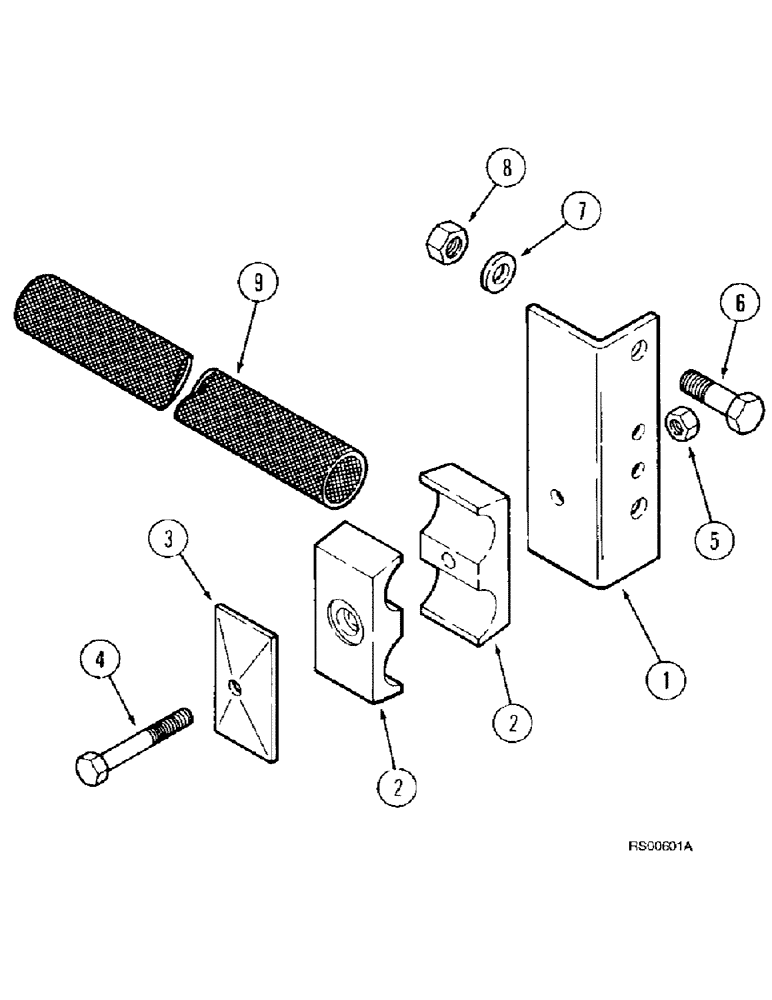

Запчасти Case IH 1680 (5-50) - STEERING HOSE MOUNTING KIT, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING

1315505C1

KIT

- mounting, steering hydraulic hose, Includes: Ref. 1 - 9

1шт.

1

1324467C2

ANGLE

BRACKET - hose angle

1шт.

2

1324473C1

CLAMP

- hose

1шт.

3

1324469C1

PLATE

- clamp

1шт.

4

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

1шт.

5

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

6

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

7

NLS

NO LONGER SERVICED

- flat, 7/16 x 1 x 1/16 inch

2шт.

8

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

9

1324450C1

SLEEVE

- nylon, 3-5/16 ID x 36 inch long

2шт.
