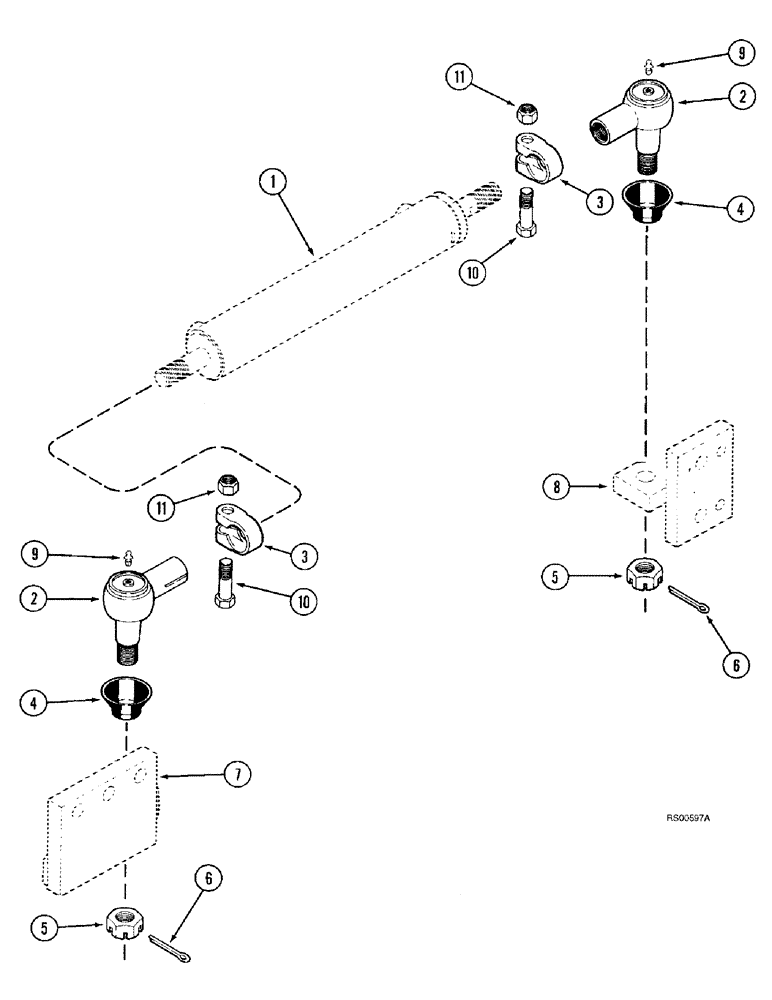

Запчасти Case IH 1680 (5-42) - STEERING CYLINDER AND BALL JOINTS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING

1

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - 57 (2-1/4) ID x 229 mm (9 inch) stroke, steering, parts list page 5-10

1шт.

2

186140C91

BALL JOINT

END ASSEMBLY - steering cylinder, Includes: Ref. 3 - 5

2шт.

3

446308C91

CLAMP

ASSEMBLY - retaining

1шт.

4

110373R1

DUST CAP

SEAL - end, cylinder

1шт.

5

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF

1шт.

6

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

7

1324464C1

SUPPORT

- steering bracket, steering bracket, See Figure 5-36

1шт.

8

1324462C1

SUPPORT

- steering bracket, tie rod, left-hand, See Figure 5-36

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

10

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

2шт.

11

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

2шт.
