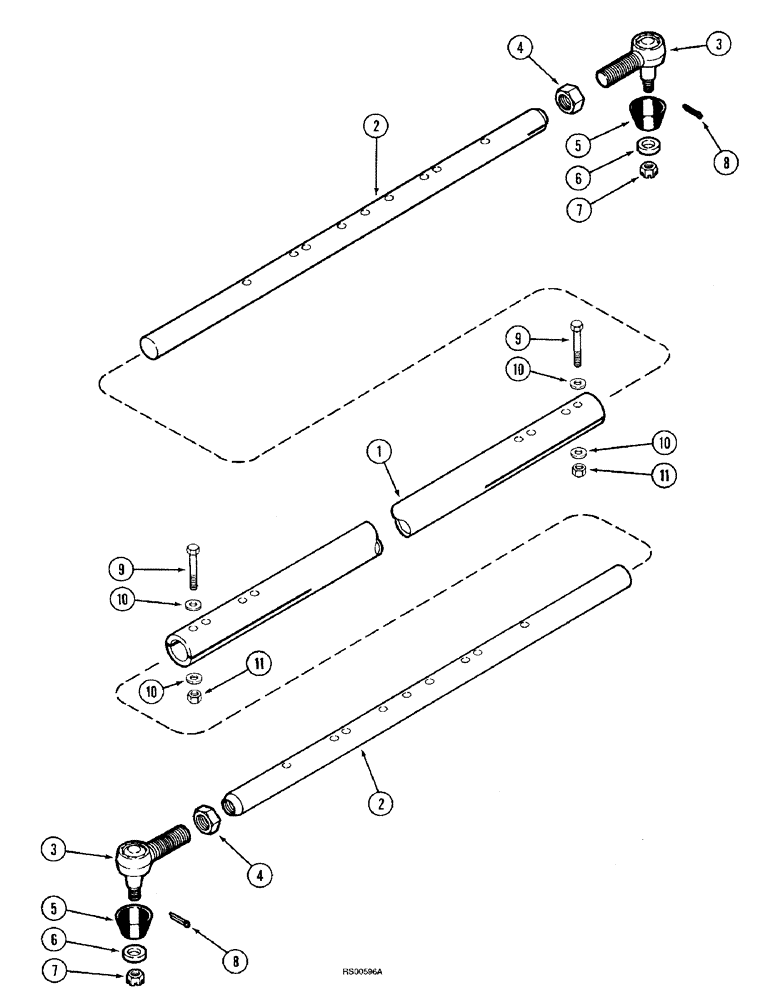

Запчасти Case IH 1680 (5-40) - STEERING TIE ROD, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING

1

1324459C1

TUBE,2" OD, 83" Length

- tie rod

1шт.

2

1324460C1

TUBE,33" Length

- tie rod

2шт.

3

1310570C1

END

- tie rod

2шт.

4

1310571C1

JAM NUT

- hex jam special, 1 inch

2шт.

5

1310572C1

RUBBER SEAL

- tie rod end

2шт.

6

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

2шт.

7

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch

2шт.

8

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

9

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

4шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

11

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.
