Запчасти Case IH 1680 (5-36) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING

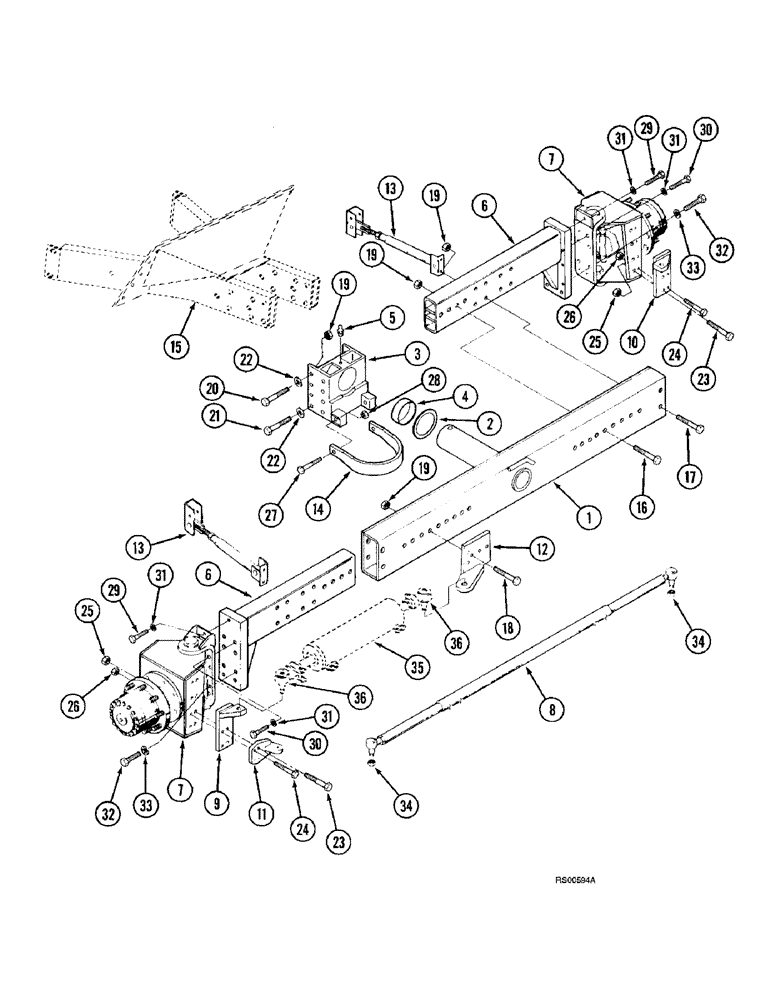

Схема запчастей Case IH 1680 - (5-36) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING
12
30
35
13
19
19
31
31
9
28
31
29
36
32
29
14
34
23
23
8
11
22
33
19
5
25
36
3
26
21
18
31
15
22
6
30
26
1
25
16
13
7
34
32
17
24
27
2
19
33
20
7
4
6
24
10

Артикул

Название

Примечание

Количество

1

1302522C3

CENTER AXLE

AXLE - adjustable, 92 to 120 inch

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

4шт.

3

186599C93

SUPPORT

ASSEMBLY - axle pivot, Includes: Ref. 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot

2шт.

5

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

6

1324475C1

EXTENSION

- axle

2шт.

7

REF

INSTRUCTION

DRIVE ASSEMBLY - wheel, See Figure 5-39

2шт.

8

REF

INSTRUCTION

ROD - tie, See Figure 5-40

1шт.

9

1324461C1

SUPPORT

- tie rod, left-hand

1шт.

10

1324463C1

SUPPORT

- tie rod, right-hand

1шт.

11

1324462C1

SUPPORT

- steering bracket

1шт.

12

1324464C1

SUPPORT

- steering bracket

1шт.

13

REF

INSTRUCTION

SUPPORT ASSEMBLY - axle stay, See Figure 5-12

2шт.

14

1302625C1

CHANNEL

STRAP - tow

1шт.

15

1315447C2

SUPPORT

- steering axle, See Figure 5-12

1шт.

16

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

3шт.

17

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

4шт.

18

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

3шт.

19

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

18шт.

20

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

6шт.

21

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

22

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

23

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

4шт.

24

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

4шт.

25

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

26

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

27

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

28

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

29

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

30

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

8шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

32

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

8шт.

33

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

34

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

2шт.

35

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - 57 (2-1/4) ID x 229 mm (9 inch) stroke, steering, parts list Figure 5-10

1шт.

36

186140C91

BALL JOINT

END ASSEMBLY - steering cylinder, parts list Figure 5-42

2шт.

Выбрано товаров: 36
