(5-34) - WHEELS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001

Запчасти Case IH 1680 (5-34) - WHEELS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING

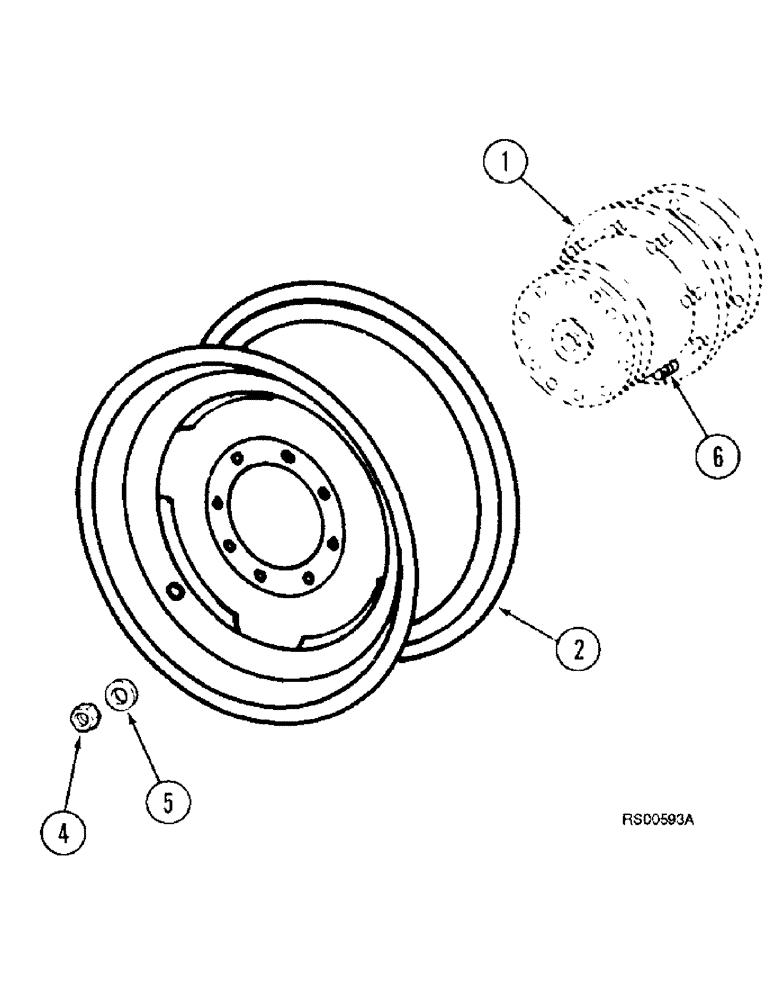

Схема запчастей Case IH 1680 - (5-34) - WHEELS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING
6
5
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1324465C91

HOUSING

ASSEMBLY - planetary gear, parts list Figure 5-52

2шт.

2

188928C1

WHEEL

- for 14.9 x 24 tire

2шт.

2

1970153C1

RIM

WHEEL - drive, steering

2шт.

4

429-1110

NUT,5/8"-18, G8

18шт.

5

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

18шт.

6

1310563C1

STUD,5/8" - 18 x 2.15"

- headed

18шт.
