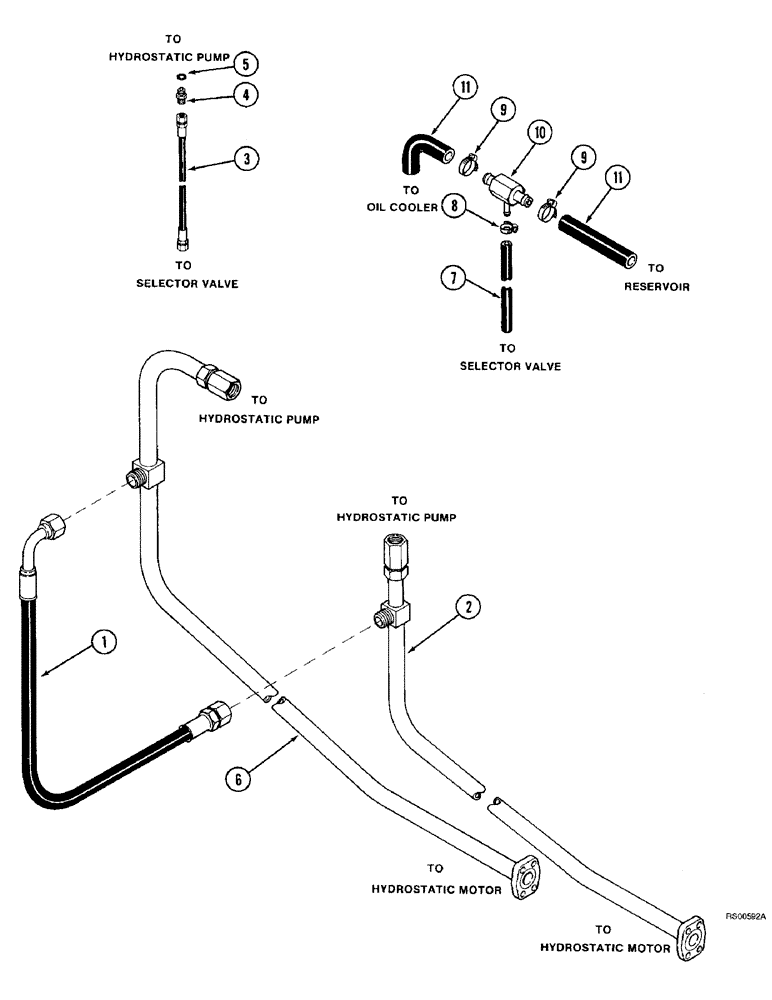

Запчасти Case IH 1680 (5-32) - UPPER HYDRAULIC SYSTEM, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC00440001 (04) - STEERING

1

1304931C1

HOSE,19.05mm ID x 762mm L

- 762 mm (30 inch) long, valve pressure

2шт.

2

1301715C2

HYD TUBE

TUBE - forward upper pressure, Includes: O-ring

1шт.

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

3

32-309

HOSE

- 914 mm (36 inch) long

1шт.

4

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

6

1301714C2

HYD TUBE

TUBE - reverse upper pressure

1шт.

7

1315504C1

HOSE

- 1194 mm (47 inch) long, housing drain

1шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

1шт.

9

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

10

196709C1

TEE

- 3/4 x 3/4 x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - 7 inch (178 mm) long, cut from 364360C1 bulk hose, see below, return

2шт.

364360C1

HOSE

- bulk, 19 (3/4) ID x 15240 mm (600 inch) long

1шт.
