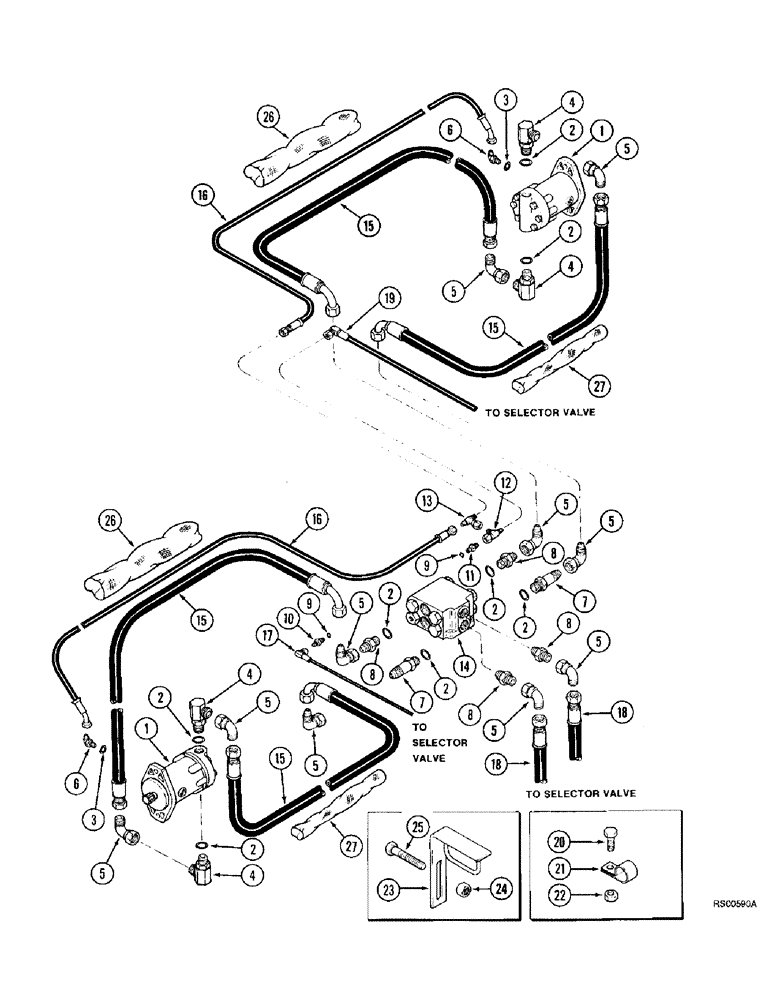

Запчасти Case IH 1680 (5-28) - DRIVE MOTOR HYDRAULIC SYSTEM, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING

1

1310556C91

MOTOR, ELECTRIC

MOTOR ASSEMBLY - wheel, part list Figure 5-54

2шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

8шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

4

1324476C3

ELBOW

- 90 degree, 1-1/16-12 inch thread

4шт.

5

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

10шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

2шт.

7

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

2шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

4шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

10

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss

1шт.

11

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss

1шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

1шт.

13

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- 9/16-18 inch swivel x flare x flare

1шт.

14

1324466C91

VALVE

- positraction, See Figure 5-44

1шт.

15

1324452C1

HOSE

- 1385 mm (54-1/2 inch) long, drive

4шт.

16

1324453C1

HOSE

- 2184 mm (86 inch) long, drive

2шт.

17

1315519C1

HOSE

- 2080 mm (82 inch) long, charge pressure

1шт.

18

1315517C1

HOSE

- 1755 mm (69 inch) long, pressure

2шт.

19

1315518C1

HYDRAULIC HOSE,9.52 mm ID x 1780.00 mm

- Drain 9.52 mm ID x 1780.00 mm

1шт.

20

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

21

28135R1

CLAMP

- P-type

2шт.

22

329-1410

JAM NUT,Jam, 5/8"-11, G8

2шт.

26

1324450C1

SLEEVE

- nylon, 3-5/16 ID x 36 inch long

2шт.

27

1324451C1

PROTECTIVE SLEEVE,40.4 mm ID x 914.50 mm

SLEEVE, 40.40 mm ID x 914.50 mm, Nylon

2шт.
