(5-16) - ADJUSTABLE STEERING AXLE (CONTD)

Запчасти Case IH 1680 (5-16) - ADJUSTABLE STEERING AXLE (CONTD) (04) - STEERING

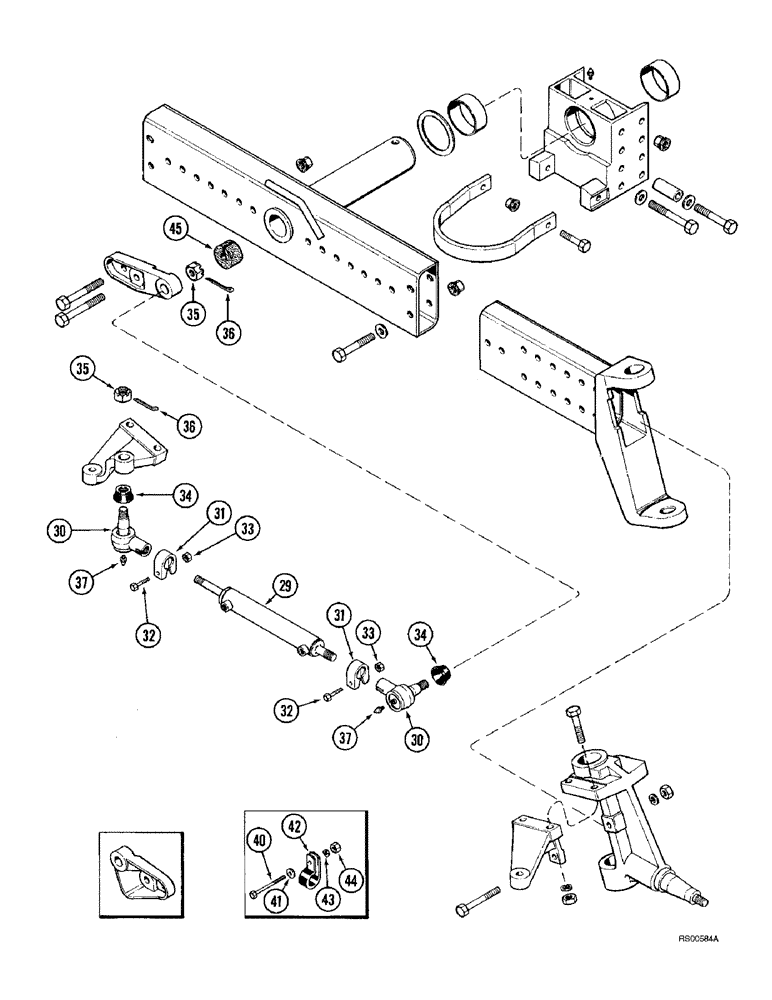

Схема запчастей Case IH 1680 - (5-16) - ADJUSTABLE STEERING AXLE (CONTD) (04) - STEERING
33
33
31
36
32
40
30
30
45
41
31
42
43
37
34
35
34
29
36
37
32
44
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

29

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - 57 (2-1/4) ID x 229 mm (9 inch) stroke, steering, parts list Figure 5-10

1шт.

30

186140C91

BALL JOINT

END ASSEMBLY - steering cylinder, Includes: Ref. 31 - 35

2шт.

31

446308C91

CLAMP

ASSEMBLY - steering cylinder end, Includes: Ref. 32 & 33

1шт.

32

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

33

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self locking, 7/16 inch NC

1шт.

34

110373R1

DUST CAP

SEAL - end, cylinder

1шт.

35

429-1314

NUT,7/8"-14, G8

NUT - hex, slotted, 7/8 inch NF, grade 8

1шт.

36

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

40

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

1шт.

41

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

42

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

45

167955C2

SEAL

GROMMET - steering cylinder hoses

1шт.
