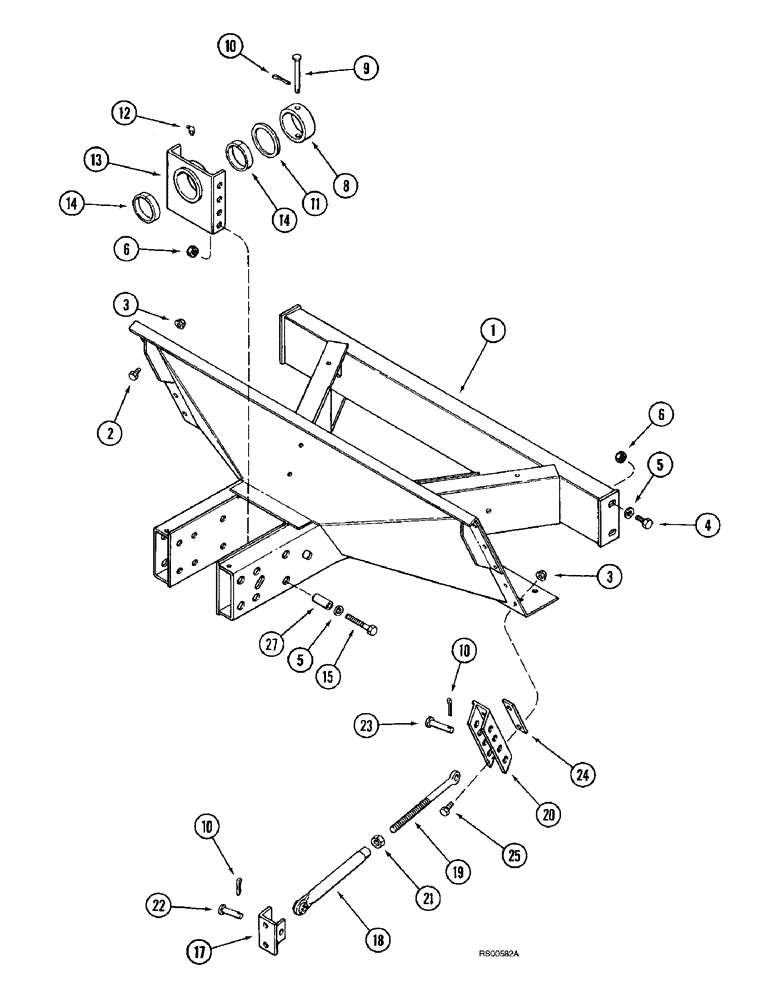

Запчасти Case IH 1680 (5-12) - STEERING AXLE SUPPORT, ADJUSTABLE AXLE (04) - STEERING

1

1315447C2

SUPPORT

- steering axle

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

14шт.

3

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

14шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- hex, 3/4 NC x 1-1/2 inch, grade 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

8шт.

8

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

- axle pivot

1шт.

9

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

PIN - headed, 3/4 x 5-1/2 inch, grade 2

1шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

11

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

2шт.

12

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

2шт.

13

182792C93

SUPPORT ASSY.

SUPPORT - pivot, front, Includes: Ref. 14

1шт.

14

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING - axle pivot

2шт.

15

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

17

183152C1

SUPPORT

- rear

2шт.

Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.

1шт.

18

181444C1

TIE-ROD,1" - 8

BODY - adjusting rod

2шт.

Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.

1шт.

19

181442C3

EYEBOLT,1" - 8 x 381mm

ROD - adjusting

2шт.

Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.

1шт.

20

1541603C1

SUPPORT

BRACKET - adjusting rod, front, replaces 183151C1

2шт.

Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.

1шт.

21

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

22

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

PIN - headed, 7/8 x 3-1/2 inch, grade 2

2шт.

23

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

PIN - headed, 7/8 x 3 inch

2шт.

24

1324514C1

BAR

- spacer, not for Power Guide Axle

2шт.

Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.

1шт.

25

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

6шт.

27

177748C1

SPACER

- 13/16 x 1-1/4 x 2-13/16 inch

4шт.
