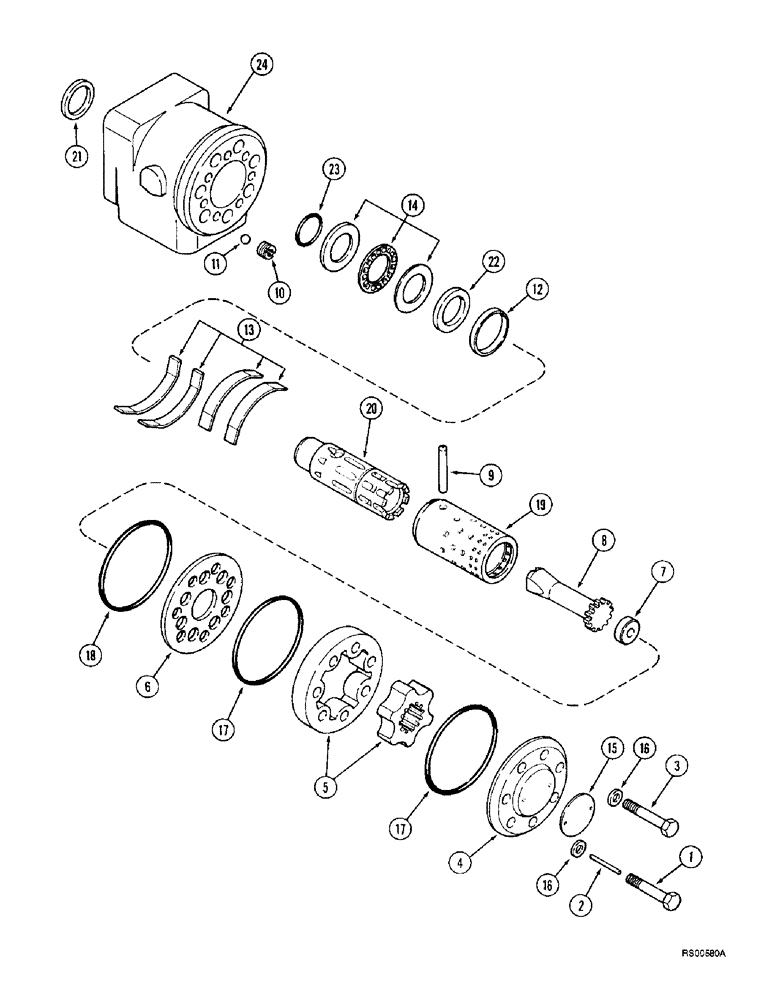

Запчасти Case IH 1680 (5-08) - STEERING HAND PUMP (04) - STEERING

1282040C93

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering, hand, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - hex, special (drilled)

1шт.

2

3112271R1

PIN, ROLL

PIN - roll, 2 x 32 mm

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT - hex

6шт.

4

3112273R1

COVER

- end

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - set

1шт.

6

1272803C1

PLATE

- pump

1шт.

7

NSS

NOT SOLD SEPARAT

SPACER - shaft

1шт.

8

1272797C1

SHAFT

- drive, pump

1шт.

9

1272796C1

CROSS PIN

6 x 41 mm - dowel, special, 6 x 41 mm

1шт.

10

1272793C1

BUSHING

- threaded

1шт.

11

1272794C1

BALL

- check, 8.5 mm diameter

1шт.

12

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

O-RING - sleeve

1шт.

13

1272809C1

PACKAGE

KIT - spring, set of four

1шт.

14

1272808C1

NEEDLE BEARING

- needle bearing

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - rating

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - flat, cover bolt

7шт.

Part of pump repair seal kit P/N 3141548R91

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - 2 x 76 mm

2шт.

Part of pump repair seal kit P/N 3141548R91

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1 x 80 mm

1шт.

Part of pump repair seal kit P/N 3141548R91

1шт.

19

NSS

NOT SOLD SEPARAT

SLEEVE - shaft

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - shaft

1шт.

21

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of pump repair seal kit P/N 3141548R91

1шт.

22

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of pump repair seal kit P/N 3141548R91

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - sealing

1шт.

Part of pump repair seal kit P/N 3141548R91

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

3141548R91

SEAL KIT

KIT - seal, pump repair, Includes: Ref. 16, 17, 18, 21, 22 and 23

1шт.
