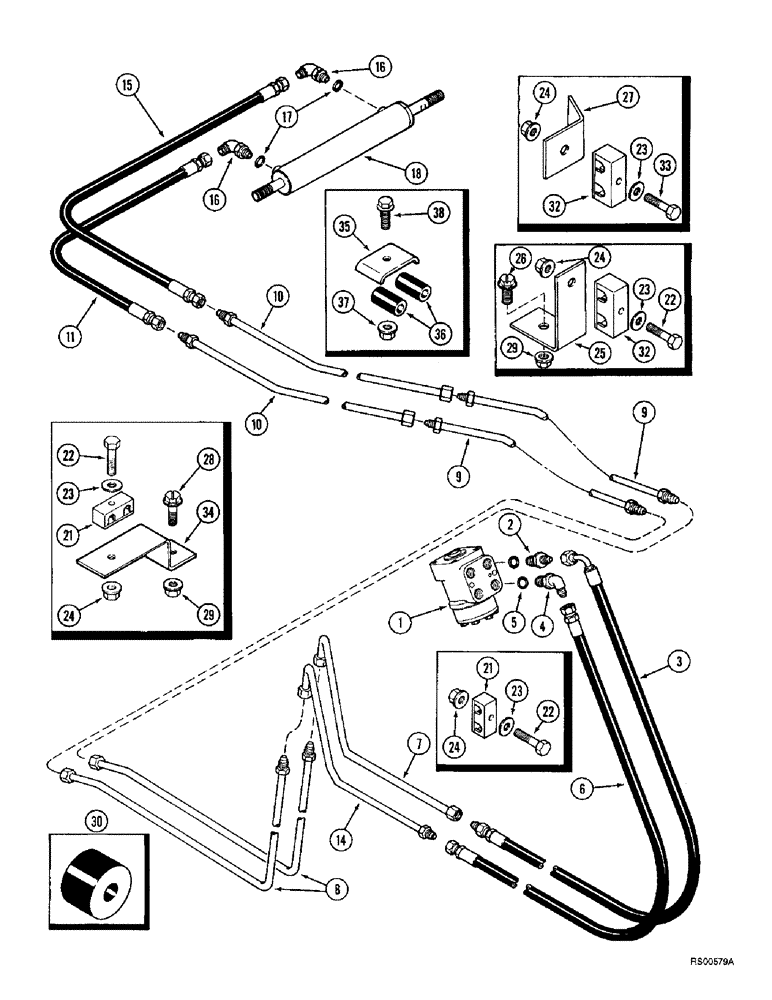

Запчасти Case IH 1680 (5-06) - POWER STEERING SYSTEM, PUMP TO CYLINDER (04) - STEERING

1

1282040C93

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering, hand, hydrostatic, parts list page 5-08

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

3

1317940C1

HOSE

- 1050 mm (41-3/8 inch) long, steering hand pump, left-hand

1шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

1317971C1

HOSE ASSY.

HOSE - 1100 mm (43-5/16 inch) long, steering hand pump, right-hand

1шт.

7

1321970C1

HYD TUBE

TUBE - steering, front

1шт.

8

1321959C1

HYD TUBE

TUBE - steering, intermediate, front

2шт.

9

196790C2

HYD TUBE

TUBE - steering, intermediate, rear

2шт.

10

187825C2

HYD TUBE,0.375" OD, 723.9 mm Length

TUBE - steering, rear

2шт.

11

1285380C2

HYDRAULIC HOSE

HOSE - 1270 mm (50 inch) long

1шт.

11

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

- 1727 mm (68 inch) long

1шт.

14

1321969C1

HYD TUBE

TUBE - steering, front

1шт.

15

178962C1

HOSE ASSY.

HOSE - 1524 mm (60 inch) long

1шт.

15

183920C1

HOSE ASSY.

HOSE - 1956 mm (77 inch) long

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

18

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - 57 (2-1/4) ID x 229 mm (9 inch) stroke, steering, parts list Figure 5-10

1шт.

21

183825C1

CLAMP

- fuel line tube

5шт.

23

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

4шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

25

178950C1

ANGLE

SUPPORT - steering tubes

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

27

178960C1

BRACKET

SUPPORT - steering rear tubes

1шт.

28

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

30

167955C2

SEAL

GROMMET - steering cylinder hoses

2шт.

32

1301178C1

CLAMP

- tube

2шт.

33

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

34

196517C1

SUPPORT TUBE

SUPPORT - fuel tubes

1шт.

35

165602C1

CLAMP

- steering tubes

1шт.

36

163490C1

RUBBER INSULATOR

INSULATOR - rubber, 3/8 ID x 1-13/64 inch long

2шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

38

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

1шт.

22

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
