Запчасти Case IH 1680 (5-04) - POWER STEERING SYSTEM, SUPPLY AND RETURN (04) - STEERING

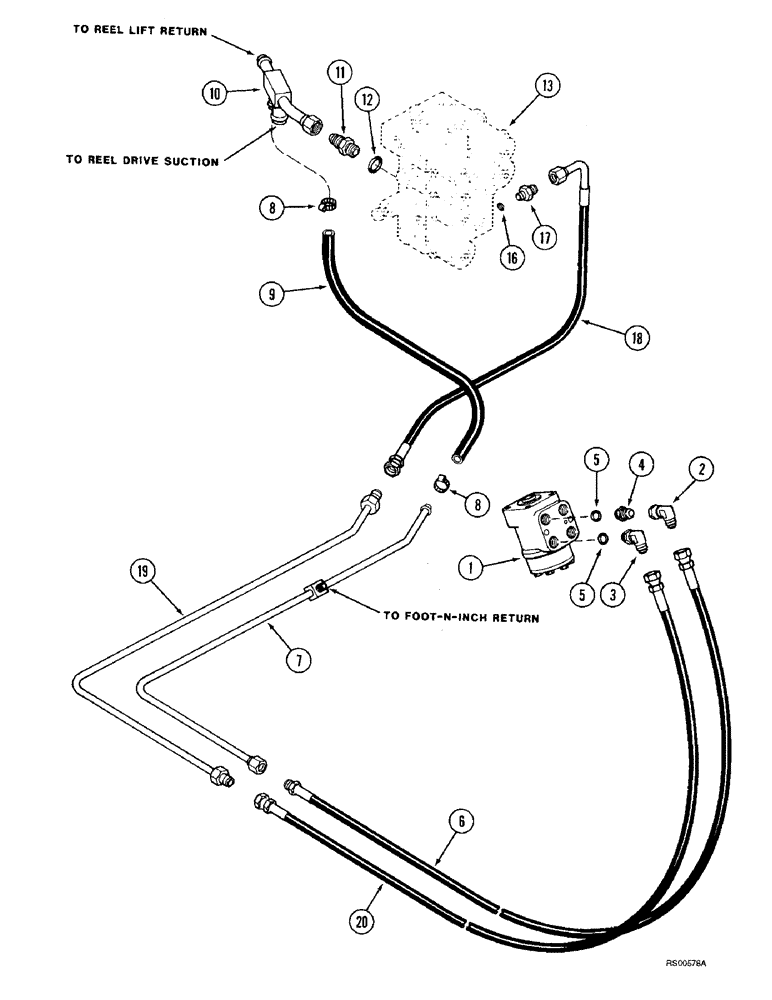

Схема запчастей Case IH 1680 - (5-04) - POWER STEERING SYSTEM, SUPPLY AND RETURN (04) - STEERING
2
4
7
6
12
5
8
17
16
5
18
9
11
20
1
10
13
19
3
8

Артикул

Название

Примечание

Количество

1

1282040C93

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering, hand, hydrostatic, parts list Figure 5-08

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

1317939C1

HOSE

- 1125 mm (44-1/4 inch) long, steering hand pump return

1шт.

7

1310758C2

HYD TUBE,0.5" OD, 635, 355 mm Length

TUBE - steering return

1шт.

8

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE - 660 mm (26 inch) long, cut from S118466X bulk hose, see below, steering return

1шт.

10

1310757C1

TUBE

- manifold

1шт.

11

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - control, See Figure 8-28 or 8-30

1шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss

1шт.

18

1310755C2

HOSE

- steering pressure

1шт.

19

1310759C2

HYD TUBE,0.5" OD, 635, 483 mm Length

TUBE - steering pressure

1шт.

20

1327580C1

HOSE

- 1040 mm (40-5/16 inch) long, steeering hand pump pressure

1шт.

S118466X

LARGE HOSE

HOSE - bulk, 13 (1/2) ID x 7620 mm (300 inch) long

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 19
