Запчасти Case IH 1680 (6-92) - TRACK ROLLER (03) - POWER TRAIN

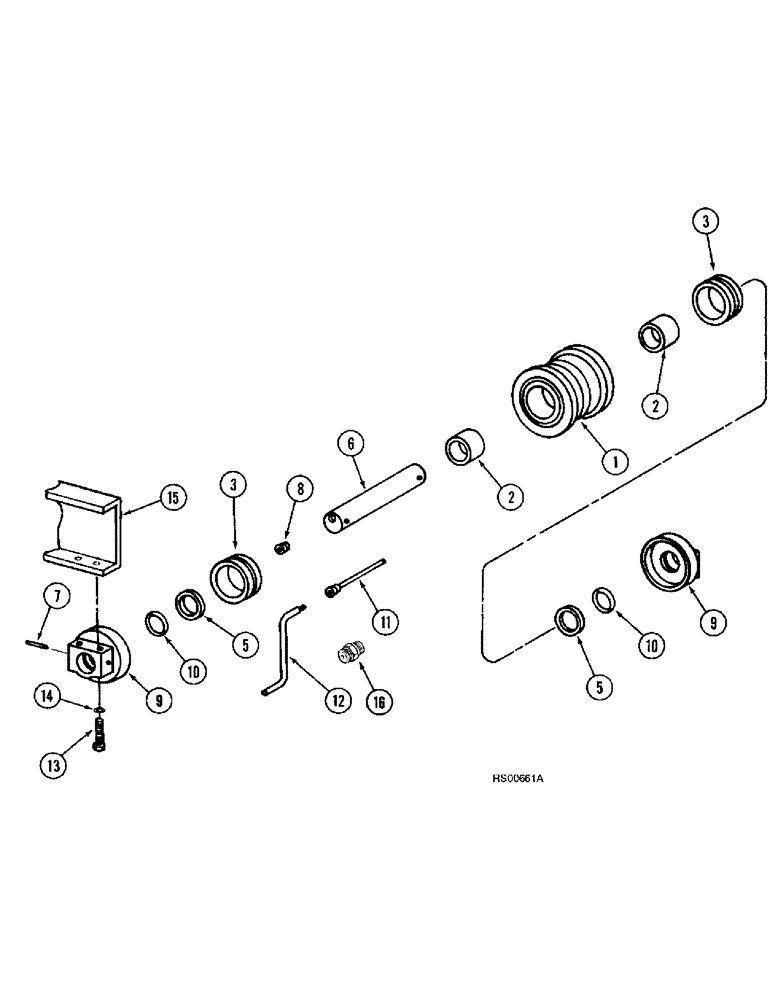

Схема запчастей Case IH 1680 - (6-92) - TRACK ROLLER (03) - POWER TRAIN
2
10
15
3
6
16
5
8
11
9
14
9
7
1
10
3
5
12
2
13

Артикул

Название

Примечание

Количество

1

621462C94

ROLLER

ASSEMBLY - track, Includes: Ref. 2 - 10

12шт.

2

621458C3

BUSHING

- idler roller

24шт.

3

740915C91

OIL SEAL

KIT - track seal

24шт.

5

621419C1

THRUST WASHER

- thrust

24шт.

6

621459C1

SHAFT

- roller

12шт.

7

38-32424

PIN,3/8" x 1 1/2", Coiled

24шт.

8

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket headless, 3/8 inch PT

12шт.

9

621463C1

HOUSING

BRACKET - shaft support

24шт.

10

655266C1

O-RING,1.734" ID x 0.144" Width

- 1-3/4 ID x 1/8 inch wide

24шт.

11

1330259C1

TUBE,6.78" Length

- lubricator, track

2шт.

12

304910R2

SPECIAL WRENCH

WRENCH - socket plug

1шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

48шт.

14

392-21050

LOCK WASHER,1/2"

1/2"

48шт.

15

186836C1

FRAME

- track, 6 roller, See Figure 6-84, item 1

2шт.

16

1330260C1

FITTING

- hex button head

1шт.

Выбрано товаров: 15
