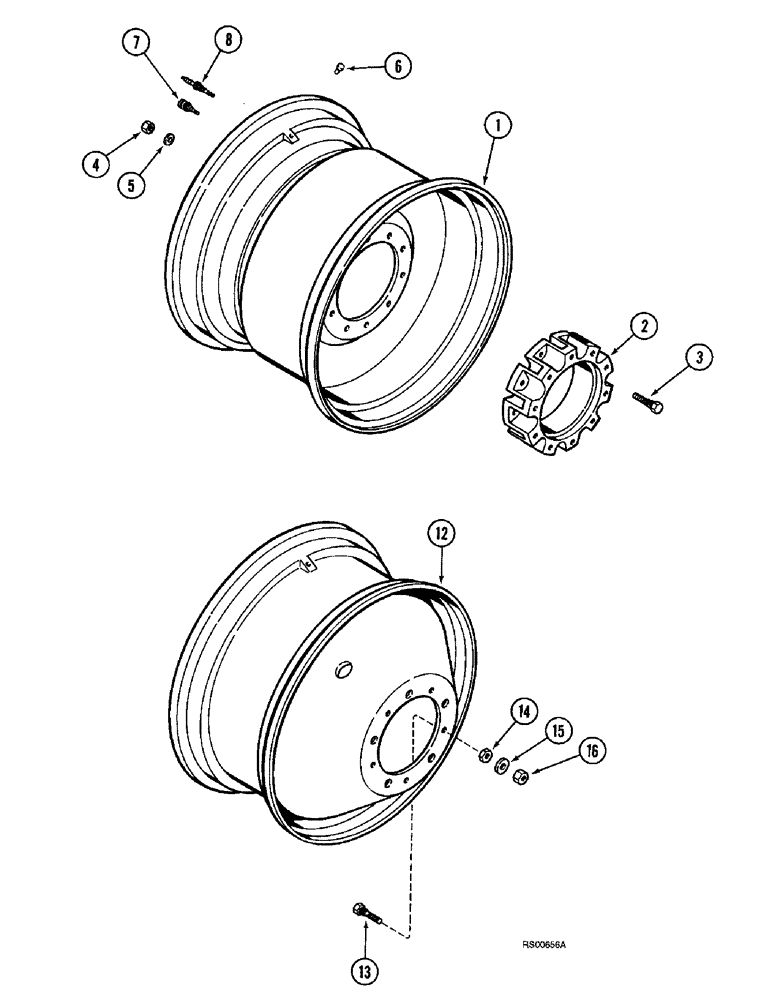

Запчасти Case IH 1680 (6-82) - DRIVE WHEELS AND SPACERS (03) - POWER TRAIN

1

194268C2

RIM

WHEEL - drive, 67 x 34-30 inch tire

2шт.

1

184482C4

WHEEL

- drive, for 24.5 x 32 and 30.5L x 32 tire

2шт.

1

184480C4

WHEEL

- drive, 30.5L x 32 inch tire

2шт.

2

178912C92

RETAINER

SPACER - wheel, 3 inch

2шт.

2

188124C91

RETAINER

SPACER - wheel, 2 inch

2шт.

3

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

- wheel (Used in spacer only)

20шт.

4

329-1112

NUT,3/4"-16, G8

- hex, 3/4 inch NF, grade 8

20шт.

5

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

20шт.

6

417194C1

PLUG

- valve hole, for tubeless tires

2шт.

6

383697R1

PLUG

- valve hole, for tube type tires

2шт.

7

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter, for tubeless tires

2шт.

8

407184R1

VALVE

- inflation, for tubeless tires

2шт.

12

184352C1

RIM

WHEEL - drive, dual, 18.4 x 38 inch tire, dual drive wheels

4шт.

12

184481C1

RIM

WHEEL - drive, dual, 20.8 x 38 inch tire, dual drive wheels

4шт.

13

184430C1

BOLT

- wheel, dual drive wheels

20шт.

14

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF, dual drive wheels

10шт.

15

184403C1

SPACER

- flat, 13/16 x 2 x 3/8 inch, dual drive wheels

20шт.

16

329-1112

NUT,3/4"-16, G8

- hex, 3/4 inch NF, grade 8, dual drive wheels

20шт.
