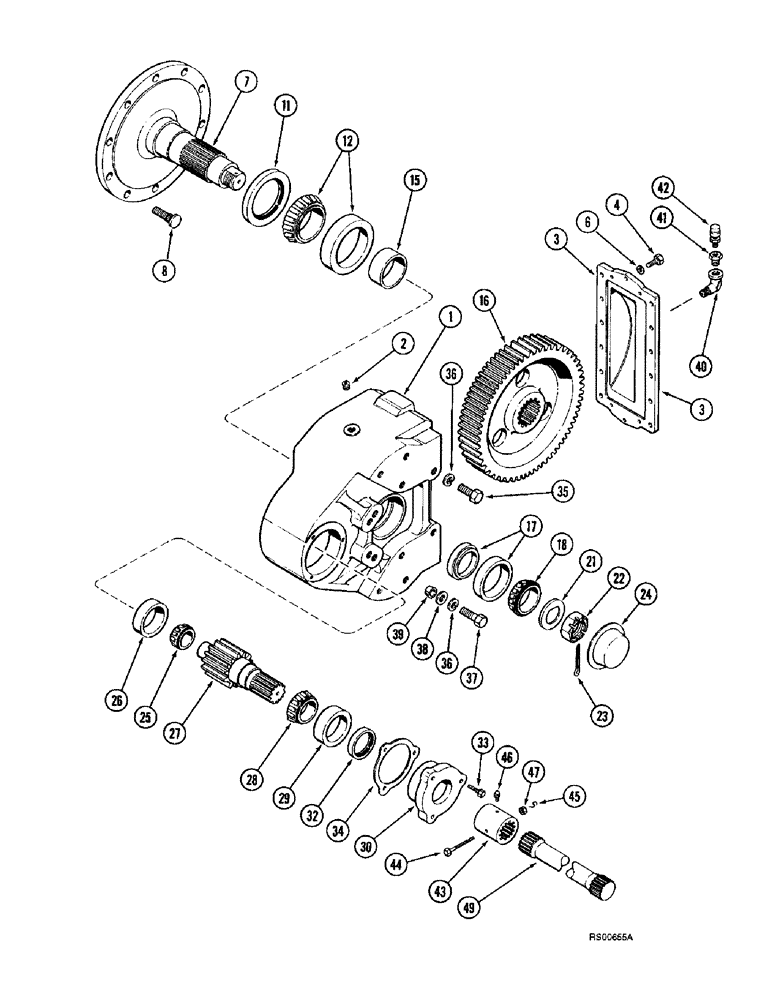

Запчасти Case IH 1680 (6-80) - FINAL DRIVE, P.I.N. JJC0028001 AND AFTER (03) - POWER TRAIN

92770C92

DRIVE

DRIVE ASSEMBLY - final, Includes: Ref. 1 - 49

2шт.

Final drive 92770C92 must be used with dual wheel drive.

1шт.

92770C92R

REMAN-TRANSMISSION

Remanufactured Final Drive; For N.A. only

1шт.

92770C92C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

86851C2

HOUSING

HOUSING - final drive

1шт.

2

221-887

PLUG

PLUG - square socket, 3/4 inch PT

2шт.

3

86839C2

COVER

COVER - housing

1шт.

The housing cover does not have a gasket. Use RTV silicon compound.

1шт.

4

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

BOLT, Hex, 1/2"-13 x 1 1/2", G8, Full Thd

12шт.

4

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

6шт.

6

396-21053

WASHER,17/32" x 1 1/16" x .134"

WASHER, , Hardened 17/32" x 1 1/16" x .134"

12шт.

6

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

6шт.

7

1315484C91

SHAFT

SHAFT ASSEMBLY - drive, Includes: Ref. 8

1шт.

8

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

BOLT - wheel

10шт.

11

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

SEAL - oil

1шт.

12

283445C91

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

BEARING ASSEMBLY - two piece, includes cone and cup

1шт.

15

130809C1

SPACER

SPACER - gear

1шт.

16

130885C1

GEAR

GEAR - drive, 66 teeth

1шт.

17

130808C1

SPACER

SPACER - gear

1шт.

18

66116R91

BEARING ASSY,66.67mm ID x 112.71mm OD x 30.16mm W

BEARING ASSEMBLY - two piece, includes cone and cup

1шт.

21

403896R1

WASHER

WASHER - special

1шт.

22

147030R1

SLOTTED NUT

NUT - hex, slotted, special

1шт.

23

432-840

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

24

403895R1

COVER

CAP - main shaft

1шт.

25

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

CONE - tapered roller bearing, 1-3/4 inch ID

1шт.

26

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

CUP - tapered roller bearing, 3-11/16 inch O.D.

1шт.

27

130884C1

SHAFT

SHAFT - pinion

1шт.

28

196454C91

BEARING ASSY,57.15mm ID x 30.96mm W

CONE - tapered roller bearing, 2-1/4 inch ID

1шт.

29

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

CUP - tapered roller bearing, 4-1/8 inch ID

1шт.

30

94649C2

CAGE

CAGE - inner bearing

1шт.

32

401914R91

OIL SEAL,54.28mm ID x 85.22mm OD x 11.13mm Thk

SEAL - oil, double lip

1шт.

33

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

BOLT - hex, 3/8 NC x 1-3/4 inch, grade 8

3шт.

34

86895C1

SHIM,117.4mm ID x 136.2mm OD x 0.08mm Thk

SHIM - 0.003 inch

1шт.

34

86896C1

SHIM,117.4mm ID x 136.2mm OD x 0.13mm Thk

SHIM - 0.005 inch

1шт.

34

86897C1

SHIM,117.4mm ID x 136.2mm OD x 0.18mm Thk

SHIM - 0.007 inch

1шт.

34

86898C1

SHIM,117.4mm ID x 136.2mm OD x 0.76mm Thk

SHIM - 0.030 inch

1шт.

35

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

BOLT, Hex, 3/4"-10 x 2", G8

10шт.

36

492-11075

LOCK WASHER,3/4"

3/4"

14шт.

37

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

BOLT - hex, 3/4 NC x 2-1/4 inch, grade 8

4шт.

38

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

WASHER, 13/16" x 1 1/2" x .179", HDN

4шт.

39

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

BUSHING - tapered

4шт.

40

141621

ELBOW,90 Degree, 3/4" NPT Street

ELBOW - 90 degree, 3/4 male x 3/4 PT female

1шт.

41

221-90

REDUCER,3/4" NPT x 1/8" NPT

REDUCER - pipe, 3/4 male x 1/8 inch female

2шт.

42

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

2шт.

43

184341C2

SPLINED COUPLING

COUPLING ASSEMBLY - axle drive shaft, Includes: Ref. 44 - 46

2шт.

44

113-2293

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

BOLT, Hex, 3/8"-16 x 3 1/2", G8

2шт.

45

21864R1

COTTER PIN

PIN - retaining, S-type

2шт.

46

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

2шт.

47

654049R1

LOCK NUT

NUT - hex, self locking, 3/8 inch NC

2шт.

49

184189C1

SHAFT

SHAFT - final drive

2шт.
