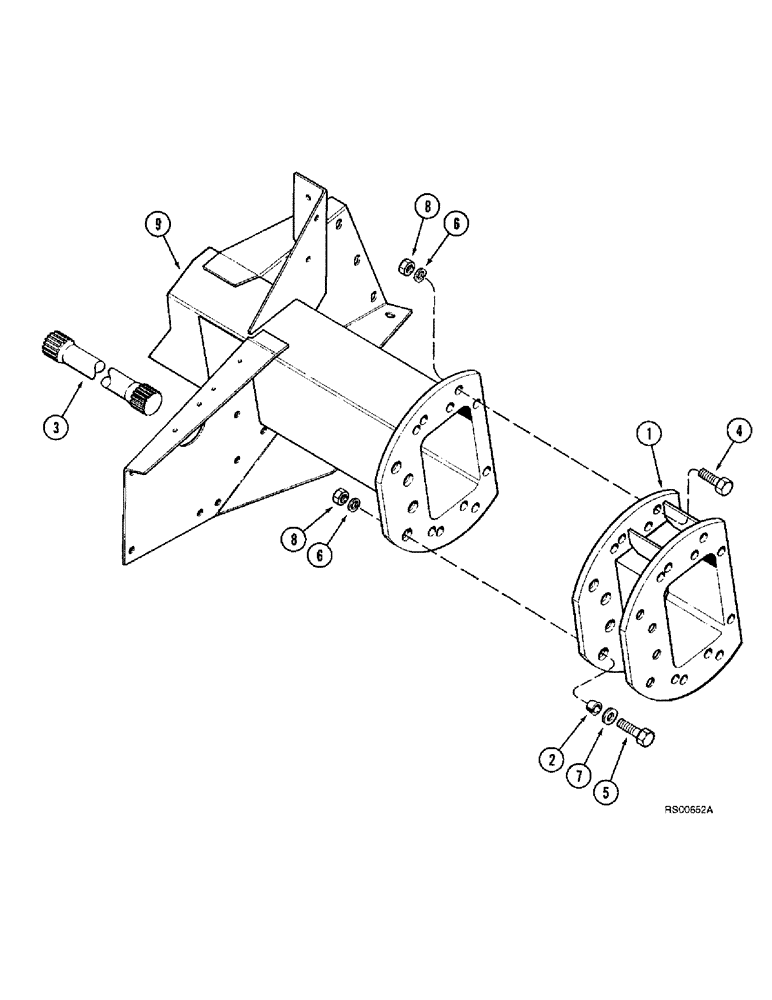

Запчасти Case IH 1680 (6-74) - AXLE EXTENSION (03) - POWER TRAIN

1

177345C4

EXTENSION ASSY.

EXTENSION - drive axle

2шт.

2

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

- tapered

8шт.

3

184188C1

SHAFT

- axle

2шт.

4

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4 NC x 2-1/4 inch, grade 8

12шт.

5

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

4шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

16шт.

7

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

8шт.

8

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

16шт.

9

REF

INSTRUCTION

AXLE - drive, See Figure 6-72

1шт.
