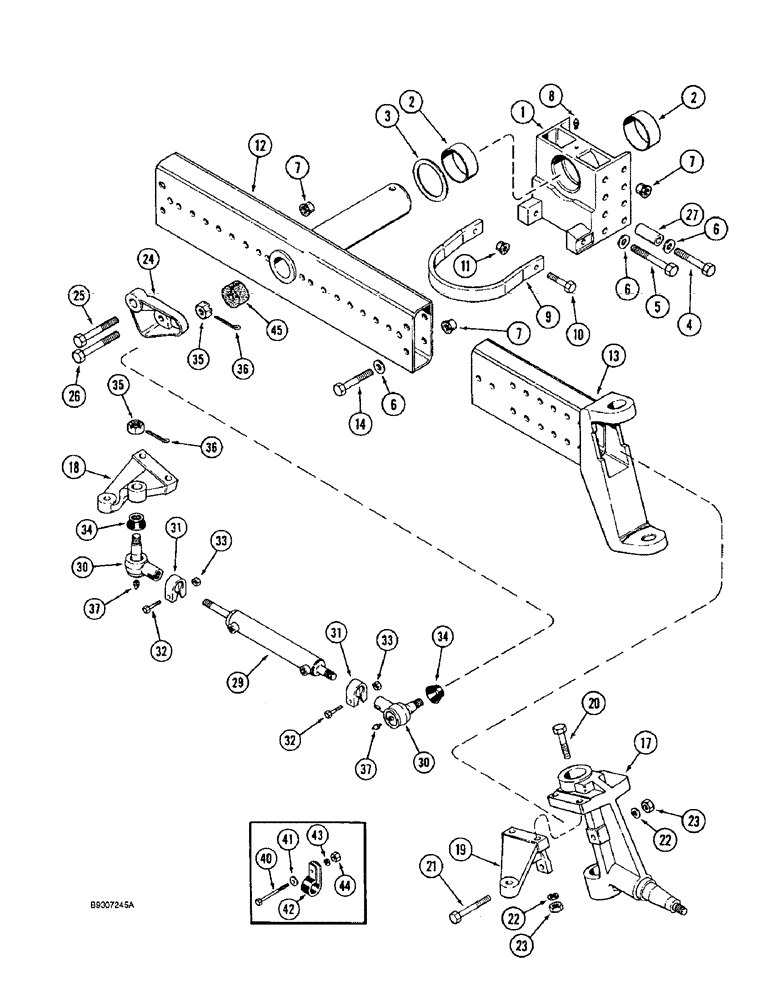

Запчасти Case IH 1666 (5-18) - STEERING AXLE, ADJUSTABLE, WITHOUT POWER GUIDE AXLE, RICE COMBINE (04) - STEERING

1

186599C93

SUPPORT

axle pivot, Includes: Ref. 2

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

axle pivot

2шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

flat, special, pivot tube

1шт.

4

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

6шт.

5

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

6

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

11шт.

7

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

16шт.

8

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

9

1302625C1

CHANNEL

STRAP tow

1шт.

10

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

11

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex serrated flange, 5/8 inch NC, grade 8

2шт.

12

186317C3

CENTER AXLE

adjustable, 92 - 120 inch

1шт.

13

186045C2

EXTENSION ASSY.

axle, 92 - 120 inch

2шт.

14

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

hex, 3/4 NC x 4-1/2 inch

6шт.

16

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

hex, 3/4 NC x 5-1/2 inch

2шт.

17

REF

INSTRUCTION

KNUCKLE steering, parts list Fig. 5-28

2шт.

18

186641C1

LEVER

ARM steering, left hand

1шт.

19

186639C1

LEVER

ARM steering, right hand

1шт.

20

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

4шт.

21

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

22

492-11062

BEARING WASHER,5/8"

6шт.

23

429-1010

NUT,5/8"-11, G8

6шт.

24

186574C1

ANCHOR

steering cylinder, 92 - 120 inch axle, replaced by 133319A1

1шт.

24

133319A1

SUPPORT

ANCHOR steering cylinder, replaces 186574C1

1шт.

25

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

26

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

BOLT hex, 3/4 NC x 5-1/4 inch

1шт.

27

177748C1

SPACER

13/16 x 1-1/4 x 2-13/16 inch, support

8шт.

29

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

2 (51) ID x 9 inch (229 mm) stroke, tie, parts list Fig. 5-10

1шт.

30

181335C91

BALL JOINT

END ASSEMBLY steering cylinder, Includes: Ref. 31 thru 35

2шт.

31

446308C91

CLAMP

ASSEMBLY steering cylinder end, Includes: Ref. 32 and 35

1шт.

32

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

BOLT hex, 7/16 NC x 1-7/8 inch

1шт.

33

231-4117

LOCK NUT,7/16"-14, GB

hex, self-locking, 7/16 inch NC

1шт.

34

110373R1

DUST CAP

end, cylinder, steering

1шт.

35

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

36

432-816

COTTER PIN,1/8" x 1"

2шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

40

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

BOLT hex, 5/16 NC x 4-1/2 inch

1шт.

41

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

flat, 11/32 x 1 x 3/64 inch

1шт.

42

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1-7/8 inch diameter, steering hose

1шт.

For steering hoses on 92 to 120 inch axle only.

1шт.

43

492-11031

LOCK WASHER,5/16"

1шт.

For steering hoses on 92 to 120 inch axle only.

1шт.

44

425-105

NUT,5/16"-18, G5

1шт.

For steering hoses on 92 to 120 inch axle only.

1шт.

45

167955C2

SEAL

GROMMET steering hoses

1шт.

For steering hoses on 92 to 120 inch axle only.

1шт.
