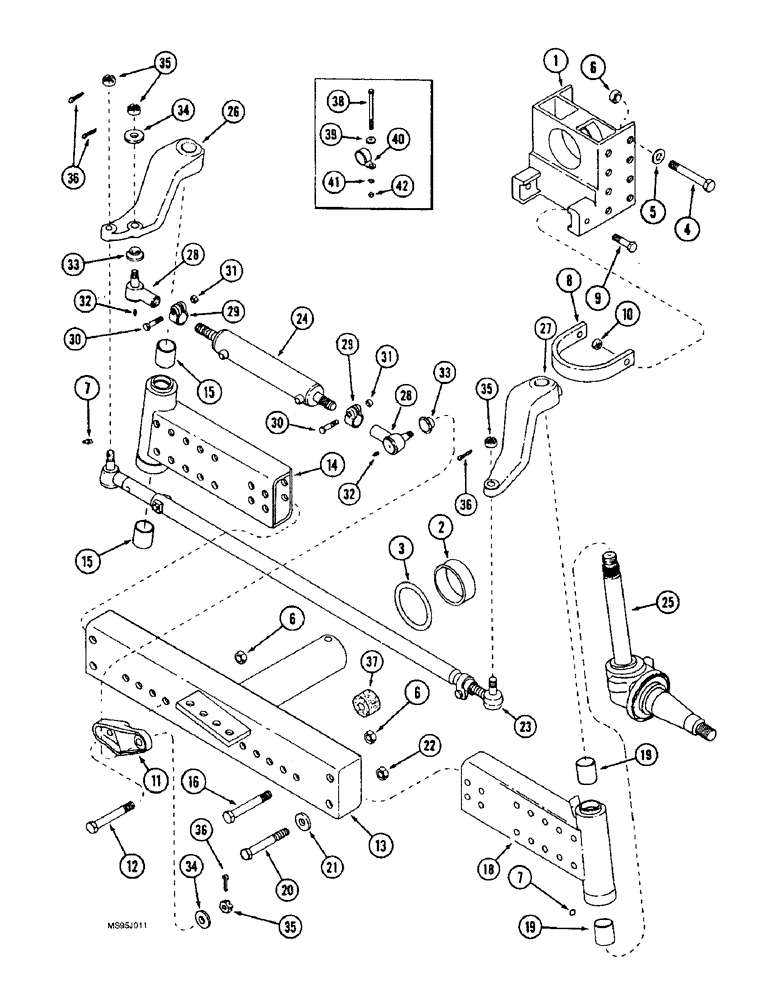

Запчасти Case IH 1666 (5-16) - STEERING AXLE, ADJUSTABLE, WITHOUT POWER GUIDE AXLE, CORN AND GRAIN COMBINE (CONT) (04) - STEERING

18

177764C91

EXTENSION ASSY.

axle, right hand, 67 to 91 inch

1шт.

18

183455C91

EXTENSION

axle, right hand, 92 to 120 inch, Includes: Ref. 19

1шт.

19

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

spindle, included with 183455C91 and 177764C91 axle extension assemblies

2шт.

20

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

hex, 3/4 NC x 4-1/2 inch

1шт.

20

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

21

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

22

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

23

REF

INSTRUCTION

ROD ASSEMBLY tie, parts list Fig. 5-22

1шт.

24

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

2 (51) ID x 9 inch (229 mm) stroke, steering, parts list Fig. 5-10

1шт.

25

1315374C1

STEERING KNUCKLE

parts list Fig. 5-26

1шт.

26

193911C3

ARM

steering, left hand

1шт.

27

193912C3

STEERING ARM

steering, right hand

1шт.

28

186796C1

BALL JOINT

SOCKET cylinder end, Includes: Ref. 29 thru 32

2шт.

29

384371R1

CLAMP

socket

1шт.

30

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

BOLT hex, 7/16 NC x 1-7/8 inch

1шт.

31

231-4117

LOCK NUT,7/16"-14, GB

hex, self-locking, 7/16 inch NC

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

33

382562R1

SEAL

end

2шт.

34

95-81019

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

flat, 23/32 x 1-1/2 x 7/64 inch

2шт.

35

425-1310

SLOTTED NUT,5/8"-18, G5

4шт.

36

432-824

COTTER PIN,1/8" x 1 1/2"

4шт.

37

167955C2

SEAL

GROMMET steering hoses

1шт.

38

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

BOLT hex, 5/16 NC x 4-1/2 inch

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

39

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

flat, 11/32 x 1 x 3/64 inch

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

40

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1-7/8 inch diameter, steering hose

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

41

492-11031

LOCK WASHER,5/16"

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

42

425-105

NUT,5/16"-18, G5

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.
