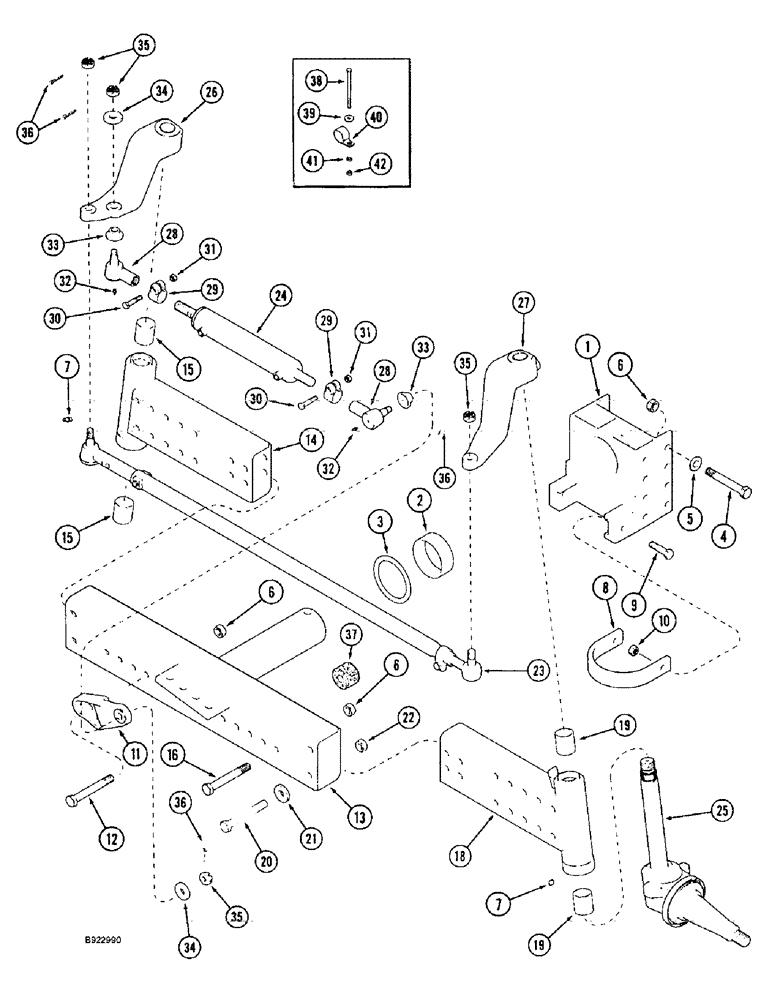

Запчасти Case IH 1666 (5-14) - STEERING AXLE, ADJUSTABLE, WITHOUT POWER GUIDE AXLE, CORN AND GRAIN COMBINE (04) - STEERING

1

177749C92

SUPPORT ASSY.

axle pivot

1шт.

All except 92 to 120 inch axle.

1шт.

1

186599C93

SUPPORT

axle pivot, Includes: Ref. 2

1шт.

92 to 120 inch axle.

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

axle pivot

1шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

flat, special, pivot tube

1шт.

4

413-1292

BOLT,Hex, 3/4" -10 x 5-3/4", Gr 5

BOLT hex, 3/4 NC x 5-3/4 inch

1шт.

All except 92 to 120 inch axle.

1шт.

4

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

1шт.

92 to 120 inch axle.

1шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

7

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

8

196084C2

CHANNEL

STRAP tow

1шт.

All except 92 to 120 inch axle.

1шт.

8

1302625C1

CHANNEL

STRAP tow

1шт.

92 to 120 inch axle.

1шт.

9

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

1шт.

All except 92 to 120 inch axle.

1шт.

9

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

92 to 120 inch axle.

1шт.

10

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex serrated flange, 5/8 inch NC, grade 8

2шт.

11

193917C1

ANCHOR

steering cylinder

1шт.

All except 92 to 120 inch axle.

1шт.

11

182782C1

ANCHOR

steering cylinder

1шт.

92 to 120 inch axle.

1шт.

12

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

BOLT hex, 3/4 NC x 5-1/4 inch

1шт.

All except 92 to 120 inch axle.

1шт.

12

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

hex, 3/4 NC x 5-1/2 inch

1шт.

92 to 120 inch axle.

1шт.

13

182799C2

AXLE

adjustable, 67 to 91 inch, grain

1шт.

13

1302520C2

AXLE

adjustable, 67 to 91 inch, corn

1шт.

13

186317C3

CENTER AXLE

adjustable, 92 - 120 inch, grain

1шт.

13

1302522C3

CENTER AXLE

adjustable, 92 - 120 inch, corn

1шт.

14

177763C91

EXTENSION ASSY.

axle, left hand, 67 to 91 inch

1шт.

14

183454C91

EXTENSION

axle, left hand, 92 to 120 inch, Includes: Ref. 15

1шт.

15

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

spindle, included with 183454C91 and 177763C91 axle extension assemblies

2шт.

16

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

hex, 3/4 NC x 4-1/2 inch

1шт.
