(5-10) - STEERING CYLINDER, WITHOUT POWER GUIDE AXLE

Запчасти Case IH 1666 (5-10) - STEERING CYLINDER, WITHOUT POWER GUIDE AXLE (04) - STEERING

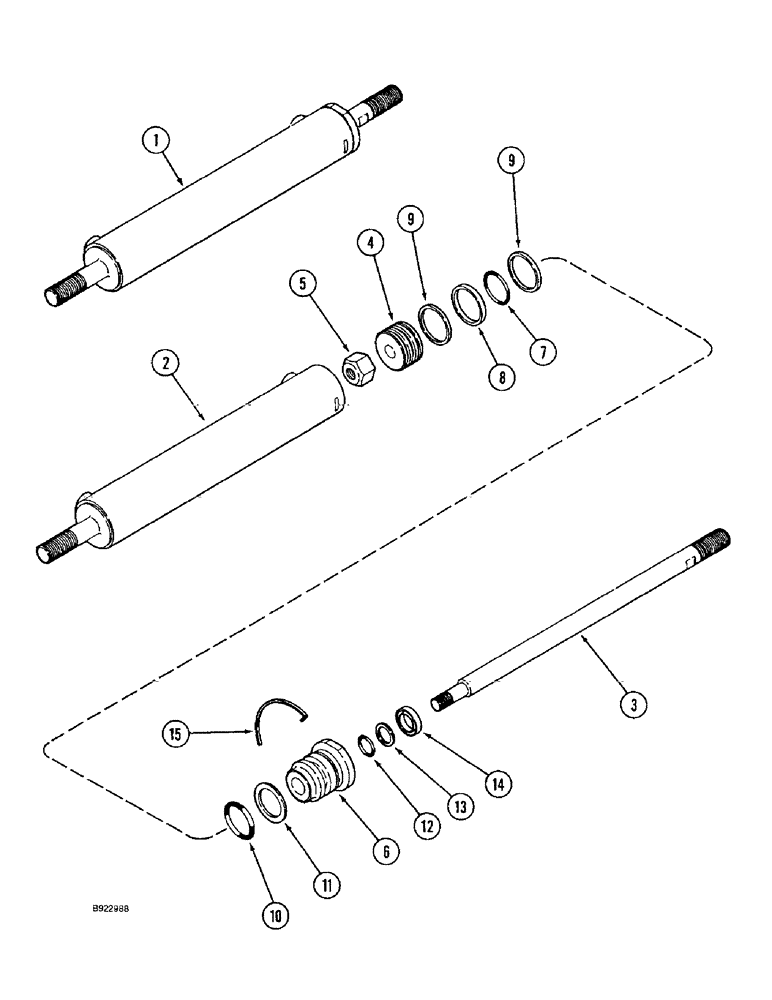

Схема запчастей Case IH 1666 - (5-10) - STEERING CYLINDER, WITHOUT POWER GUIDE AXLE (04) - STEERING
8
9
7
4
6
13
1
10
3
9
12
14
11
2
5
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

2 (51) ID x 9 inch (229 mm) stroke, steering, Includes: Ref. 2 thru 6

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY cylinder

1шт.

3

548251R1

ROD

piston

1шт.

4

548252R1

PISTON

cylinder

1шт.

5

27293R1

LOCK NUT,9/16"-18, GC

hex, self-locking, 9/16 inch NF

1шт.

6

548354R1

HEAD

GLAND cylinder, front

1шт.

548357R91

SEAL KIT

seal, cylinder, Includes: Ref. 7 thru 15

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING, 1-9/16 x 1-3/4 inch

1шт.

8

NSS

NOT SOLD SEPARAT

RING piston seal

1шт.

9

NSS

NOT SOLD SEPARAT

RING piston bearing

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING 1-5/8 x 2 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER O-ring backup, head

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING, 7/8 x 1-1/8 inch

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER O-ring backup, piston

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL wiper, piston rod

1шт.

15

NSS

NOT SOLD SEPARAT

RING retaining wire

1шт.
