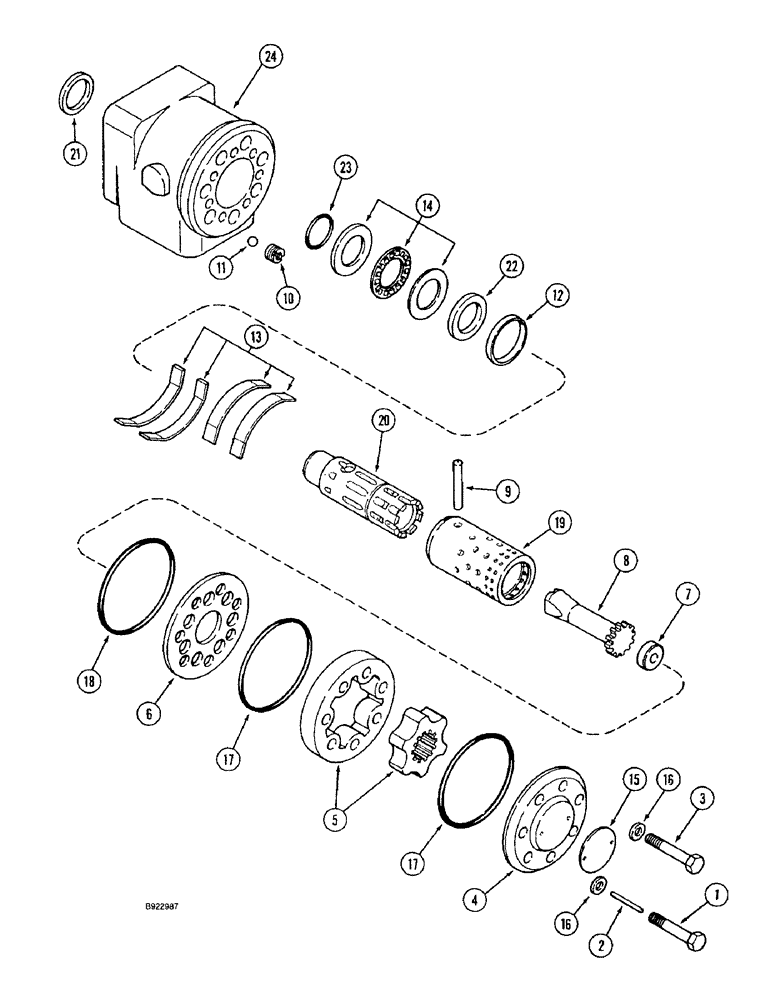

Запчасти Case IH 1666 (5-08) - STEERING HAND PUMP (04) - STEERING

1542690C1

PUMP

ASSEMBLY steering hand, Includes: Ref. 2 thru 24

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT hex special

1шт.

2

3112271R1

PIN, ROLL

2 x 32 mm

1шт.

3

3216710R1

SCREW

BOLT hex, 8 - 1.25 x 40 mm

6шт.

4

1272805C1

COVER

end

1шт.

5

NSS

NOT SOLD SEPARAT

SET gear, pump

1шт.

6

1272803C1

PLATE

pump, gear

1шт.

7

1272802C1

SPACER

shaft

1шт.

8

1272797C1

SHAFT

drive, pump

1шт.

9

1272796C1

CROSS PIN

Dowel, special, 6 x 41 mm

1шт.

10

1272793C1

BUSHING

threaded, housing

1шт.

11

1272794C1

BALL

check, 8.5 mm diameter

1шт.

12

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

O, sleeve, seal

1шт.

13

1272809C1

PACKAGE

KIT spring, set of four

1шт.

14

1272808C1

NEEDLE BEARING

needle bearing

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE rating

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER flat, cover bolt

7шт.

Part of KIT, part number 3141548R91

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING 76 x 2 mm

2шт.

Part of KIT, part number 3141548R91

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING 80 x 1 mm

1шт.

Part of KIT, part number 3141548R91

1шт.

19

NSS

NOT SOLD SEPARAT

SLEEVE pump

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE pump

1шт.

21

NSS

NOT SOLD SEPARAT

RING housing

1шт.

Part of KIT, part number 3141548R91

1шт.

22

NSS

NOT SOLD SEPARAT

RING seal

1шт.

Part of KIT, part number 3141548R91

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING seal

1шт.

Part of KIT, part number 3141548R91

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING pump

1шт.

3141548R91

SEAL KIT

seal, pump repair, Includes: Refs. 16-18 and 21-23

1шт.
