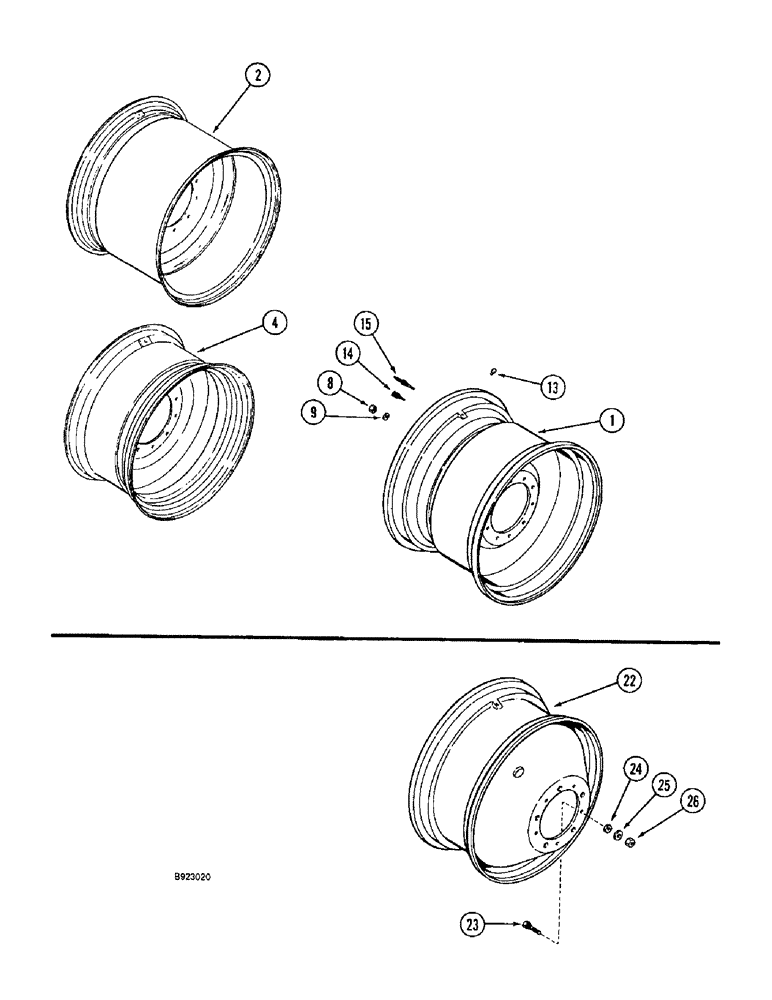

Запчасти Case IH 1666 (6-52) - DRIVE WHEELS AND SPACERS, DUAL WHEEL (03) - POWER TRAIN

1

196197C3

WHEEL ASSY.

drive, 28L x 26 in. tire, drive wheels and spacers

2шт.

2

184480C2

WHEEL ASSY.

drive, 30.5L x 32 in. tire, drive wheels and spacers

2шт.

4

184482C2

WHEEL ASSY.

drive, 24.5 x 32 in. tire, drive wheels and spacers

2шт.

8

429-1112

NUT,3/4"-16, G5

hex, 3/4 in. NF, grade 8, drive wheels and spacers

20шт.

9

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

Not used with spacer, drive wheels and spacers

20шт.

9

184403C1

SPACER

flat, 13/16 x 2 x 3/8 in. used with drive axle extension, drive wheels and spacers

20шт.

13

417194C1

PLUG

valve hole, for tubeless tire, drive wheels and spacers

2шт.

13

383697R1

PLUG

valve hole, for tube type tire, drive wheels and spacers

2шт.

14

179482C1

VALVE STEM

inflation, 7/16 in. dia., drive wheels and spacers

2шт.

15

407184C1

VALVE STEM

CORE inflation, drive wheels and spacers

2шт.

22

184352C1

RIM

WHEEL drive, dual 18.4 x 38 in. tire, dual wheel

4шт.

22

184458C1

RIM

drive, dual, 18.4 x 42 in. tire, dual wheel

4шт.

22

184456C1

RIM

drive, dual, 20.8 x 42 in. tire, dual wheel

4шт.

23

184430C1

BOLT

wheel, dual wheel

20шт.

24

329-1512

JAM NUT,Jam, 3/4"-10, G8

Dual wheel

10шт.

25

184403C1

SPACER

flat, 13/16 x 2 x 3/8 in., dual wheel

20шт.

26

429-1112

NUT,3/4"-16, G5

hex, 3/4 in. NF, grade 8, dual wheel

20шт.
