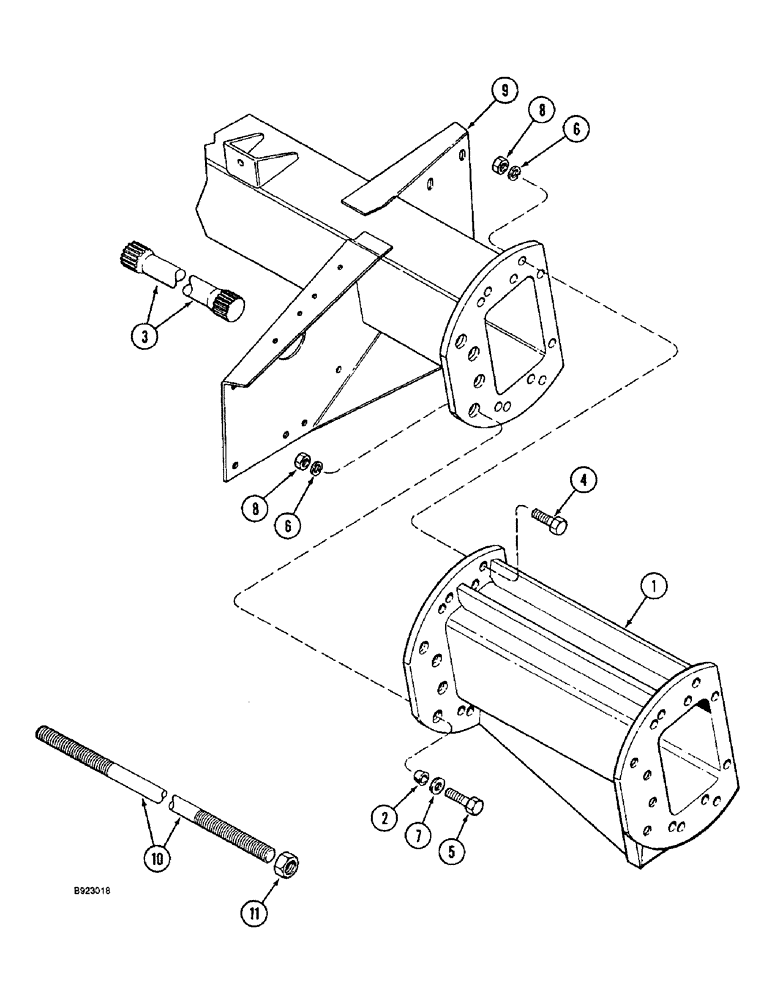

Запчасти Case IH 1666 (6-48) - AXLE EXTENSION, DUAL WHEEL, EXTRA WIDE SINGLE WHEEL (03) - POWER TRAIN

1

184364C1

EXTENSION

AXLE, left hand

1шт.

1

184365C1

EXTENSION

AXLE, right hand

1шт.

2

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

tapered, end plate

8шт.

3

184375C1

SHAFT

axle drive, left hand

1шт.

3

184376C1

SHAFT

axle drive, right hand

1шт.

4

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

BOLT hex, 3/4 NC x 2-1/4 in., grade 8

12шт.

5

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

4шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

16шт.

7

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat

8шт.

8

429-1012

NUT,3/4"-10, G8

hex, NC

16шт.

9

REF

INSTRUCTION

AXLE, drive parts see Fig.6-46

1шт.

10

184358C1

ROD

reinforcement, extension

1шт.

11

232-41320

LOCK NUT,1 1/4"-7, GC

4шт.
