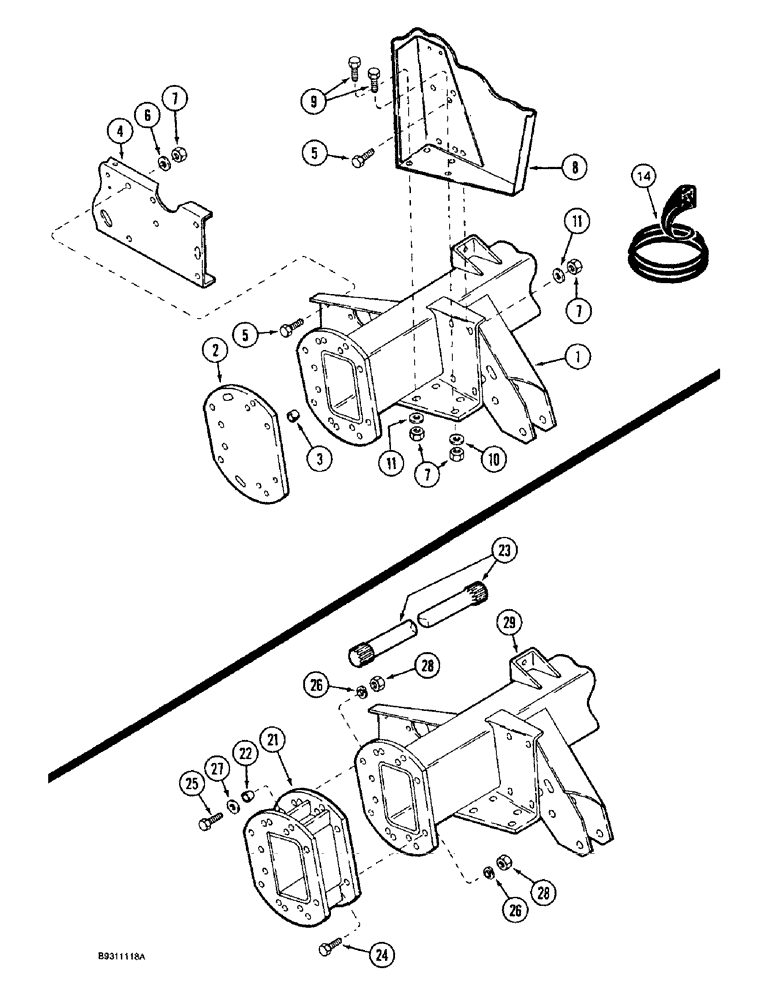

Запчасти Case IH 1666 (6-46) - DRIVE AXLE, AXLE EXTENSION, SINGLE WHEEL, SHORT EXTENSION (03) - POWER TRAIN

1

1302712C1

AXLE

drive, without gussets, axle

1шт.

1

175916A1

AXLE

drive, axle

1шт.

1

184451C2

AXLE

drive, with gussets, included in kit 128264A1 see below

1шт.

Part includes gusset kit, two front post gussets, two main sill gussets and instructions 128264A1

1шт.

2

177336C1

COVER

end plate, axle

2шт.

3

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

tapered, end plate, drive axle

4шт.

4

REF

INSTRUCTION

SUPPORT, separator side, right hand, see Fig. 9H-06 Ref. 14, drive axle

1шт.

5

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

hex, 5/8 NC x 1-1/4 in., grade 8, drive axle

22шт.

6

495-81030

WASHER,21/32" x 2" x .179"

flat, 21/32 x 2 x 11/64 in., drive axle

14шт.

7

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex, serrated flange, 5/8 in. NC, grade 8, drive axle

30шт.

8

REF

INSTRUCTION

POST separator front, right hand, see Fig. 9H-06, Ref. 12, drive axle

1шт.

9

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

Drive axle

8шт.

10

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

flat, 21/32 x 1-1/2 x 3/16 in. hardened, drive axle

4шт.

11

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 18 in., drive axle

12шт.

14

122150A1

PROTECTION STRIP

TRIM edge, 7 in., 179 mm, long, cut from 1330108CX bulk trim, see below, drive axle

1шт.

128264A1

PACKAGE

KIT gusset, includes two front post gussets, two main sill gussets and instructions, drive axle

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk, 600 in, 15240 mm, long, drive axle

1шт.

21

177345C3

EXTENSION

drive axle, 6 in., axle extension, single wheel short extension

2шт.

22

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

tapered, end plate, axle extension, single wheel short extension

8шт.

23

184223C1

SHAFT

axle, left hand, axle extension, single wheel short extension

1шт.

23

184224C1

SHAFT

axle, right hand, axle extension, single wheel short extension

1шт.

24

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

Axle extension, single wheel short extension

12шт.

25

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

Axle extension, single wheel, short extension

4шт.

26

492-11075

LOCK WASHER,3/4"

axle extension, single wheel, short extension 3/4"

16шт.

27

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, Axle extension, single wheel short extension

8шт.

28

429-1012

NUT,3/4"-10, G8

hex, NC, Axle extension, single wheel short extension

16шт.

29

REF

INSTRUCTION

AXLE drive, see Ref. 1, axle extension, single wheel short extension

1шт.
