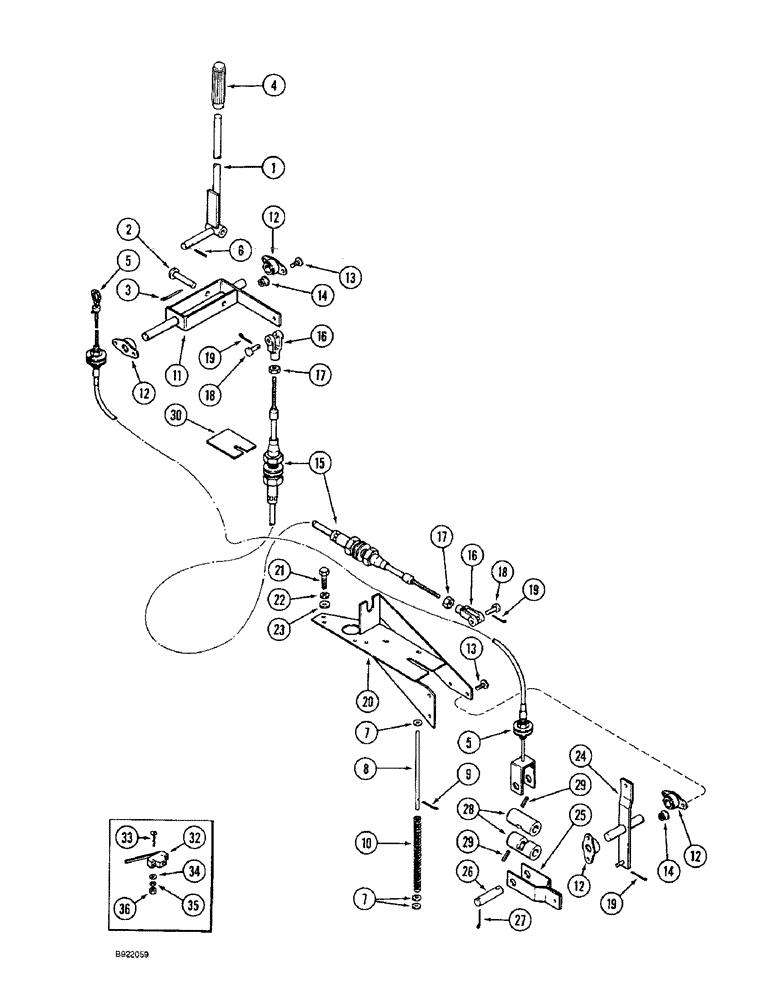

Запчасти Case IH 1666 (6-38) - TRANSMISSION, GEAR SHIFT CONTROL (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
224865C1
LEVER
gear shift
1шт.
2
439-5840
HEADED PIN,1/2" x 2 1/2"
1/2 x 2-1/2 inch
1шт.
4
193194C2
HANDLE
GRIP lever, hand control
1шт.
5
1321289C3
CABLE
transmission linkage
1шт.
6
17045R1
LOCK PIN,5/32" x 1 3/8", Slotted
2шт.
7
495-81112
WASHER,.344" x 3/4" x .120"
flat, 11/32 x 3/4 x 7/64 inch
3шт.
8
194445C1
ROD
spring anchor
1шт.
9
432-812
COTTER PIN,3/4" OAL x 1/8" W
1шт.
10
47822D
SPRING
shifting retractor
1шт.
11
1276181C1
BRACKET
SUPPORT gear shift
1шт.
12
A63366
SPHERICAL BEARING,19mm ID
pivot
4шт.
13
135270
SERRATED SCREW,5/16" - 18 x 3/4"
slotted truss head, 5/16 NC x 3/4 inch
8шт.
14
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
8шт.
15
1329390C1
CABLE ASSY.
control, shift rail
1шт.
16
213-126
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
2шт.
17
425-156
JAM NUT,Jam, 3/8"-24, G5
2шт.
19
432-612
COTTER PIN,3/32" x 3/4"
3шт.
20
194442C1
SUPPORT ASSY.
shift linkage
1шт.
21
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
3шт.
22
492-11038
LOCK WASHER,3/8"
3шт.
23
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Flat, (13/32 x 13/16 x 1/16")
3шт.
24
194439C1
LEVER ASSY.
shift, lower
1шт.
25
194437C1
LINK
shift rail control
1шт.
26
195108C2
PIN
pivot, shift plug
1шт.
27
432-824
COTTER PIN,1/8" x 1 1/2"
1шт.
28
192689C1
PIN,34.93mm OD x 73.7mm L
shift rail extension
2шт.
30
196511C1
LARGE PLATE
PLATE, LARGE SUPPORT cable nut
1шт.
32
1310827C2
SWITCH
lockout, third gear, parts list Fig. 4-10
1шт.
For use on combines with two-speed propulsion motor only.
1шт.
33
470-10620
SCREW,Pan HD, #6 - 32 x 1-1/4"
2шт.
34
95-81108
WASHER,#6
flat, 5/32 x 3/8 x 3/64 inch
2шт.
35
138526
LOCK WASHER
internal tooth lock, special, No. 6
2шт.
36
225-14106
NUT,#6-32
2шт.
