Запчасти Case IH 1666 (6-32) - HYDROSTATIC MOTOR, TWO SPEED (03) - POWER TRAIN

1343743C1

MOTOR

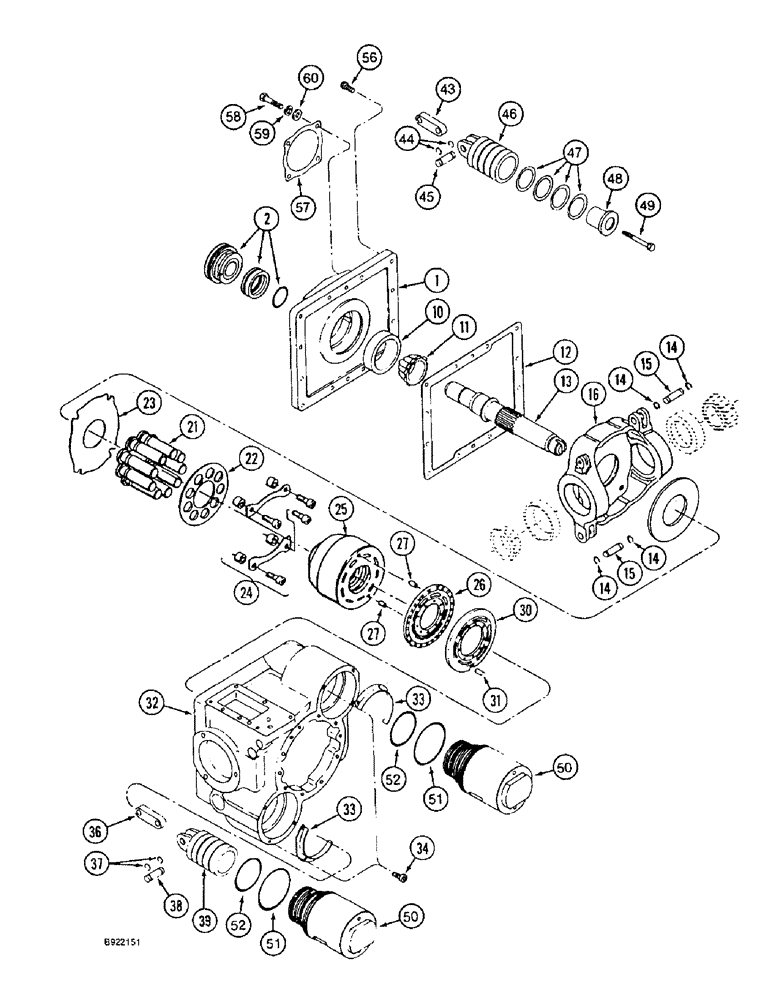

ASSEMBLY hydrostatic, new, parts list Fig. 6-32 thru 6-37A, Includes: Ref. 1 thru 52 and 61 thru 92

1шт.

1343744C1

REMAN-HYDROSTAT MOTO

hydrostatic, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1343745C1

CORE-HYDROSTAT MOTOR

RETURN NUMBER use this part number to return motor core for credit when using a remanufactured assembly

1шт.

1

NSS

NOT SOLD SEPARAT

FLANGE mounting

1шт.

2

1346205C1

SEAL KIT

SEAL shaft, three-piece

1шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

tapered roller, housing

1шт.

11

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

tapered roller, input shaft

1шт.

12

142399C1

GASKET

mounting flange

1шт.

13

1980137C1

SHAFT

ASSEMBLY output

1шт.

14

142408C1

RETAINER

servo

4шт.

15

140766C1

PIN,14.22mm OD x 39.12mm L

pivot, linkage

2шт.

16

1980174C1

HOUSING

PLATE swash, variable

1шт.

1980175C1

KIT

rotating, cylinder, Includes: Ref. 21 thru 27

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON cylinder block

9шт.

22

NSS

NOT SOLD SEPARAT

PLATE retainer

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE retainer, clear

1шт.

24

NSS

NOT SOLD SEPARAT

KIT hold down, cylinder

1шт.

25

NSS

NOT SOLD SEPARAT

BARREL cylinder

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE bearing

1шт.

27

140754C1

PIN

dowel, 5/16 x 5/8 inch

2шт.

30

1980139C1

PLATE

valve

1шт.

31

140754C1

PIN

dowel, 5/16 x 5/8 inch

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

33

142408C1

RETAINER

servo

2шт.

34

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

BOLT hex socket, No. 8 NC x 3/8 inch

6шт.

145309C1

PISTON

ASSEMBLY servo, Includes: Ref. 36 thru 39

1шт.

36

NSS

NOT SOLD SEPARAT

LINK piston servo

1шт.

37

NSS

NOT SOLD SEPARAT

RING retaining

2шт.

38

NSS

NOT SOLD SEPARAT

PIN link

1шт.

39

NSS

NOT SOLD SEPARAT

PISTON servo

1шт.

145308C1

PISTON

ASSEMBLY servo, Includes: Ref. 43 thru 49

1шт.

43

NSS

NOT SOLD SEPARAT

LINK piston servo

1шт.

44

NSS

NOT SOLD SEPARAT

RING retaining

2шт.

45

NSS

NOT SOLD SEPARAT

PIN link

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON servo

1шт.

47

NSS

NOT SOLD SEPARAT

SHIM servo piston

4шт.

48

NSS

NOT SOLD SEPARAT

SPACER servo piston

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT hex, Serial Range: spacer-piston

1шт.

50

142407C1

KIT

SLEEVE servo

2шт.

51

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

52

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

56

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT hex, 7/16 NC x 1-1/4 inch

12шт.

57

166506C1

GASKET,0.81mm Thk

mounting

1шт.

58

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

60

283856C1

WASHER

flat, 17/32 x 1 x 3/16 inch

4шт.

REF

INSTRUCTION

MOTOR ASSEMBLY hydrostatic

1шт.

61

REF

INSTRUCTION

VALVE ASSEMBLY control parts list Fig. 6-36

1шт.

62

145337C1

GASKET

control valve

1шт.

63

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

64

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ELBOW 45 degree, 7/16-20 inch flare x adj O-ring boss

1шт.

65

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 degree, 7/16-20 inch flare x adj O-ring boss

3шт.

66

175760C1

HOSE ASSY.

10 inch (254 mm) long, Serial Range: valve-block

2шт.

67

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

69

REF

INSTRUCTION

BLOCK ASSEMBLY relief parts list Fig. 6-37A

1шт.

70

140747C92

SEAL KIT

KIT valve block seal, valve block parts list Fig. 6-37A

1шт.

72

140769C1

CHECK VALVE

ASSEMBLY

2шт.

73

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

74

140770C1

RING

backup, check valve

2шт.

75

NSS

NOT SOLD SEPARAT

HOUSING end cover

1шт.

76

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

BOLT hex, 7/16 NC x 2 inch

2шт.

77

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

BOLT hex, 7/16 NC x 3 inch

6шт.

142398C91

SHIM KIT

KIT end cover, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM, 0.003 inch

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM, 0.005 inch

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM, 0.010 inch

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM, 0.015 inch

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM, 0.020 inch

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM, 0.030 inch

1шт.

79

530741R1

BEARING CUP

tapered roller, 2-17/32 inch O.D., input shaft

1шт.

80

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

tapered roller, 1-3/16 inch ID, input shaft

1шт.

81

140756C2

GASKET

end cover

1шт.

83

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

tapered roller, 2-57/64 inch O.D., trunnion

2шт.

84

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

tapered roller, 1-25/32 inch ID, trunnion

2шт.

142386C91

SHIM KIT

KIT trunnion bearing, Includes: Ref. 85

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM trunnion, 0.002 inch, 6 in kit

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM trunnion, 0.005 inch, 4 in kit

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM trunnion, 0.010 inch, 4 in kit

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM trunnion, 0.015 inch, 4 in kit

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM trunnion, 0.025 inch, 4 in kit

1шт.

86

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

87

NSS

NOT SOLD SEPARAT

TRUNNION motor

2шт.

88

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

BOLT hex, 7/16 NC x 7/8 inch

6шт.

89

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 90

1шт.

90

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

91

278548

PLUG,Hex, 7/16"-20 ORB

Not shown

1шт.

92

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Not shown

1шт.
