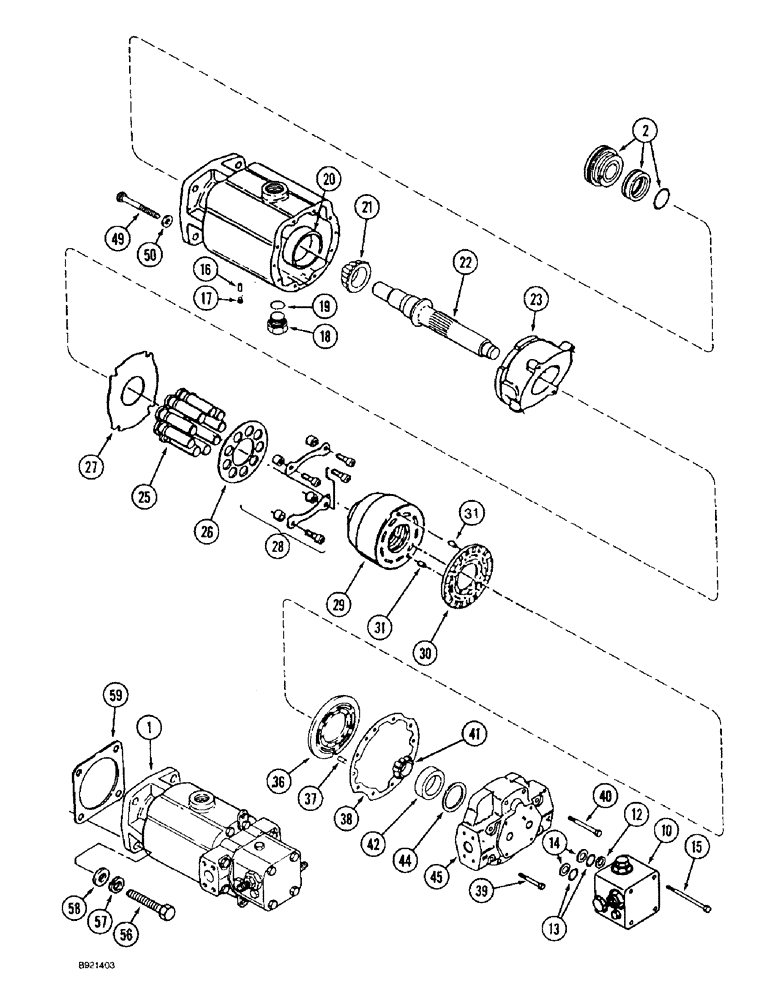

Запчасти Case IH 1666 (6-26) - HYDROSTATIC MOTOR, SINGLE SPEED (03) - POWER TRAIN

1

1343609C2

MOTOR, HYDRAULIC

ASSY. hydrostatic, new, parts list Figs. 6-26 thru 6-30, Includes: Ref. 2 thru 50

1шт.

1343610C1

REMAN-HYDROSTAT MOTO

ASSY. hydrostatic, remanufactured North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1343611C1

CORE-HYDROSTAT MOTOR

RETURN NUMBER use this part number to return motor core for credit when using a remanufactured assembly

1шт.

2

1346205C1

SEAL KIT

SEAL shaft, three-piece

1шт.

10

1971432C2

VALVE

BLOCK ASSY. relief, parts list Fig. 6-30

1шт.

140747C92

SEAL KIT

KIT valve block seal, Includes: Ref. 12, 13, and 14

1шт.

12

NSS

NOT SOLD SEPARAT

RING square, 3/4 x 7/8 x 1/16 inch

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING 3/4 ID x 1/16 inch

2шт.

14

NSS

NOT SOLD SEPARAT

RING backup

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 inch

4шт.

16

37-1516

DOWEL,5/16" x 1"

PIN hardened, 5/16 x 1 inch

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

tapered roller, output shaft

1шт.

21

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

tapered roller, output shaft

1шт.

22

1980137C1

SHAFT

ASSY. output

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE swash, fixed

1шт.

1980138C1

KIT

rotating, cylinder, Includes: Ref. 25 thru 30

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE bearing

1шт.

31

140754C1

PIN

dowel, 5/16 x 5/8 inch

2шт.

36

1980139C1

PLATE

valve

1шт.

37

140754C1

PIN

dowel, 5/16 x 5/8 inch

3шт.

38

1980140C1

GASKET,0.38mm Thk

end cover

1шт.

39

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

BOLT hex, 7/16 NC x 2 inch

2шт.

40

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

BOLT hex, 7/16 NC x 3 inch

6шт.

1343609C2

MOTOR, HYDRAULIC

ASSY., hydrostatic, Includes: Ref. 44

1шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

tapered roller, 1-3/16 inch ID, output shaft

1шт.

42

530741R1

BEARING CUP

tapered roller, 2-17/32 inch O.D., output shaft

1шт.

142398C91

SHIM KIT

KIT bearing

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.003 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.005 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.010 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.015 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.020 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.030 inch

1шт.

45

NSS

NOT SOLD SEPARAT

COVER end

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

sealing

1шт.

56

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

56

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

58

283856C1

WASHER

flat, 17/32 x 1 x 3/16 inch

4шт.

59

166506C1

GASKET,0.81mm Thk

mounting

1шт.
