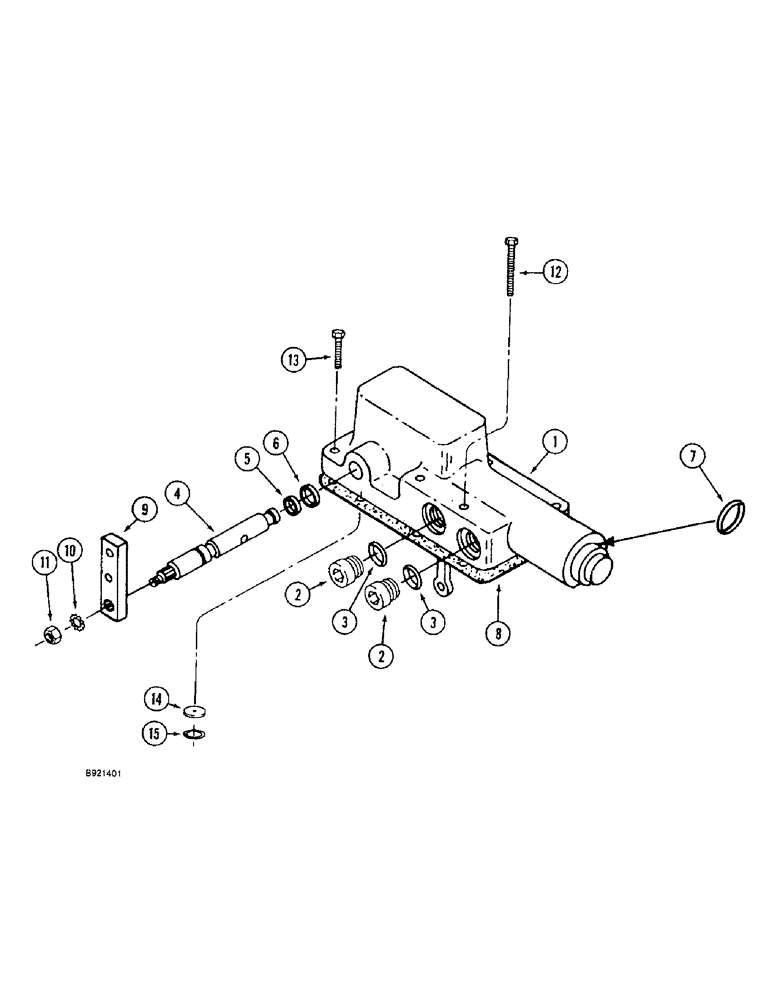

Запчасти Case IH 1666 (6-22) - HYDROSTATIC PUMP, CONTROL VALVE (03) - POWER TRAIN

133755C94

VALVE

ASSEMBLY control, pump, Includes: Ref. 1 thru 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 3

2шт.

4

1978048C2

SHAFT

ASSEMBLY valve, control, Includes: Ref. 5 and 6

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

6

1267111C1

RING,11.18mm ID x 12.7mm OD x 1.78mm Thk

SEAL shaft, if used

1шт.

7

80269C1

O-RING KIT

O-RING 5/8 ID x 1/16 inch wide, not included with valve assembly

1шт.

8

133756C1

GASKET

control valve

1шт.

9

404782R2

PLATE

control valve shaft

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

12

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

1272750C1

ORIFICE

0.057 inch, control valve

1шт.

15

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
