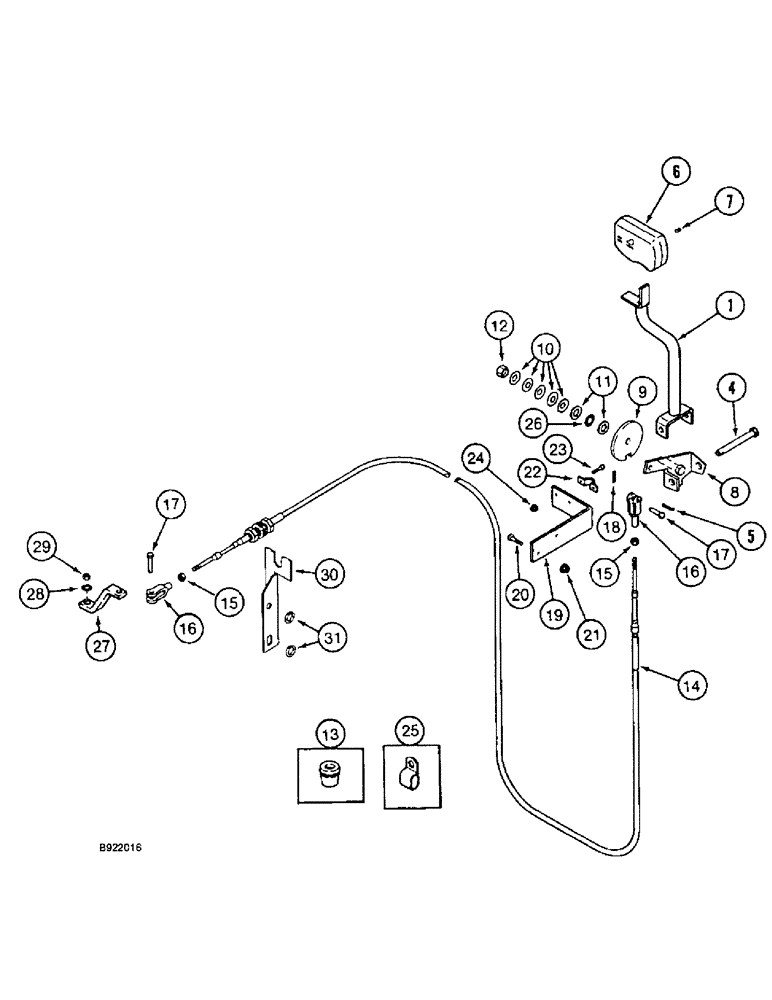

Запчасти Case IH 1666 (6-14) - PROPULSION CONTROL (03) - POWER TRAIN

1

183508C94

LEVER

propulsion control

1шт.

4

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1/2 x 3-7/16 inch, hardened

1шт.

5

432-816

COTTER PIN,1/8" x 1"

1шт.

6

1301180C92

HANDLE

control, propulsion lever, Includes: Ref. 7

1шт.

7

61-3068

HEX SOC SCREW,#6 - 32 x 1/2"

BOLT hex socket, No. 6 NC x 1/2 inch

3шт.

8

1994832C1

SUPPORT

lever pivot, threaded bolt

1шт.

9

1994977C1

FRICTION WASHER

friction, special

1шт.

10

1994980C1

BELLEVILLE WASHER

Belleville

5шт.

11

496-81010

WASHER

flat, 15/32 x 1 x 7/64 inch, hardened

2шт.

12

231-1447

NUT,7/16"-14, GB

1шт.

13

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 inch ID, hydrostatic drive control cable

2шт.

14

1339382C1

CABLE,4877mm L

control, hydrostatic drive

1шт.

15

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

2шт.

16

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

17

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

18

432-612

COTTER PIN,3/32" x 3/4"

2шт.

19

193281C1

ANGLE

control cable mounting

1шт.

20

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

22

195593C1

CLAMP

control cable

1шт.

23

937875R1

SCREW,Serr, 1/4" - 20

slotted truss head, 1/4 NC x 3/4 inch

2шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

25

362666R1

CLIP

CLAMP retaining, cable

1шт.

26

159688R91

THRUST BEARING

pivot support

1шт.

27

1994779C1

LEVER

control, pump

1шт.

28

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

29

425-105

NUT,5/16"-18, G5

1шт.

30

1994757C1

SUPPORT

BRACKET, Serial Range: cable-pump

1шт.

31

492-11044

LOCK WASHER,7/16"

2шт.
