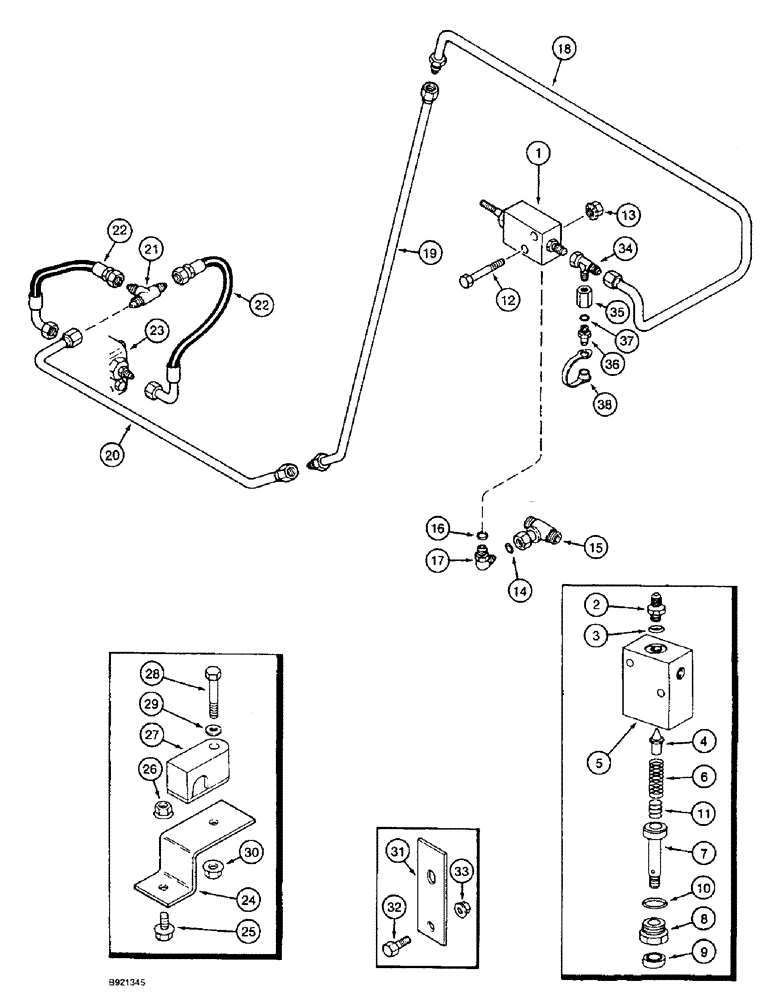

Запчасти Case IH 1666 (6-12) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN

1

1986875C1

VALVE

ASSEMBLY Foot-N-Inch, 6000 psi, housing stamped 60-75, used with corn and grain units

1шт.

1

1986876C1

VALVE

ASSEMBLY Foot-N-Inch, 6500 psi, housing stamped 65-76, used with rice units only, Includes: Ref. 2 thru 38

1шт.

2

398709R2

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 JIC

poppet valve

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

398710R1

VALVE POPPET

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

6

539751R1

SPRING

poppet

1шт.

7

398708R1

STOP

ROD poppet spring

1шт.

8

398707R1

GUIDE

RETAINER oil seal

1шт.

9

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

530575R91

SHIM KIT

KIT relief valve, Includes: Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM, 0.005 inch

4шт.

11

NSS

NOT SOLD SEPARAT

SHIM, 0.007 inch

4шт.

11

NSS

NOT SOLD SEPARAT

SHIM, 0.010 inch

2шт.

11

NSS

NOT SOLD SEPARAT

SHIM, 0.042 inch

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

13/16-16 inch swivel face branch x face x face, Includes: Ref. 15

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adj O-Ring boss, Incl Ref 17

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

1541795C1

HYD TUBE

upper

1шт.

19

1327829C1

HYD TUBE

TUBE center, Foot-N-Inch valve

1шт.

20

196764C1

HYD TUBE

lower

1шт.

21

218-591

TEE,7/16"-20, 37 Degree

TEE, 7/16-20 inch flare branch x flare x flare

1шт.

22

175760C2

HYDRAULIC HOSE,6.35mm ID x 254mm L, SAE 100R2

10 inch (254 mm) long

2шт.

23

REF

INSTRUCTION

MOTOR ASSEMBLY hydrostatic, parts list Figs. 6-26 thru 6-37A

1шт.

24

196517C1

SUPPORT TUBE

tube

1шт.

25

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

26

231-5146

FLANGE NUT,3/8"-16

1шт.

27

183820C1

CLAMP

tube

1шт.

28

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

hex, 1/4 NC x 1-3/4 inch

1шт.

29

496-21028

WASHER,.281" x 5/8" x .075", HDN

flat, 9/32 x 5/8 x 5/64 inch, hardened

1шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

31

196868C2

SUPPORT

PLATE

1шт.

32

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

34

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

TEE, 7/16-20 inch flare branch x flare x swivel

1шт.

35

1541796C1

FITTING

CONNECTOR special, 7/16-20 fem x 9/16-18 inch female

1шт.

36

1541849C1

COUPLING

ASSEMBLY diagnostic, Includes: Ref. 37 and 38

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

H434163

DUST CAP

Coupler

1шт.
