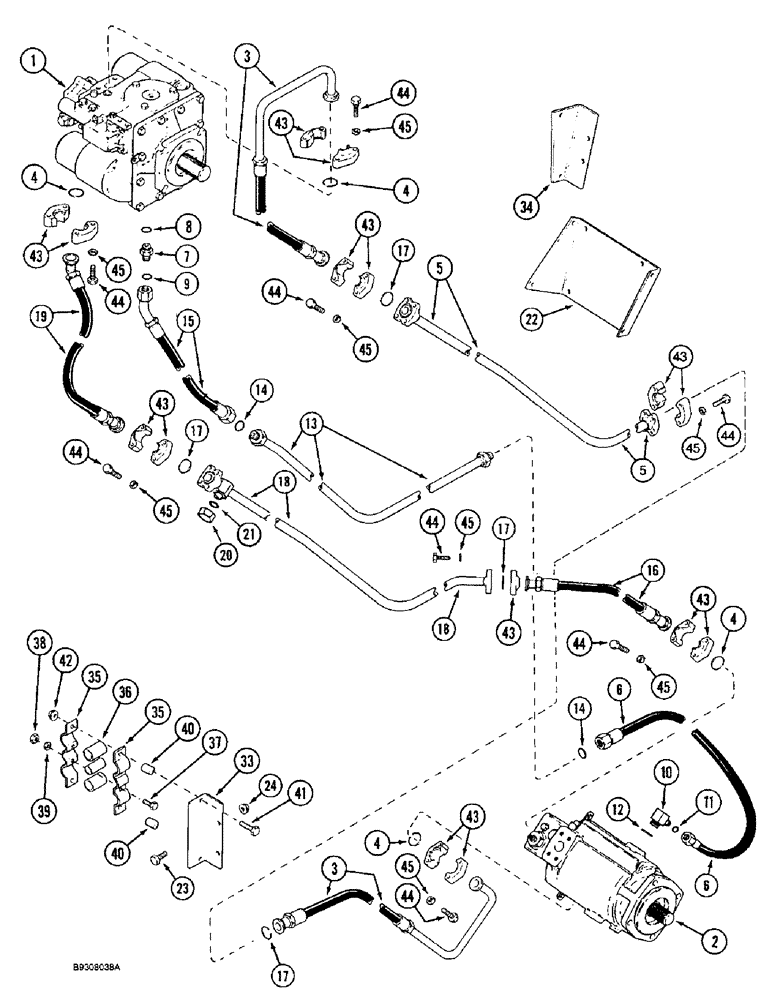

Запчасти Case IH 1666 (6-06) - HYDROSTATIC PUMP AND MOTOR SYSTEM, SINGLE SPEED (03) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY hydrostatic, parts list Figs. 6-16 thru 6-25A

1шт.

2

1343609C2

MOTOR, HYDRAULIC

ASSEMBLY hydrostatic, parts list Figures 6-26 thru 6-30

1шт.

3

1979955C2

HOSE

33-7/8 inch (860 mm) long, reverse pressure

2шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

With power guide axle

2шт.

5

1979929C1

TUBE

reverse pressure, not shown

1шт.

5

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE reverse pressure, with power guide axle

1шт.

6

1347141C2

HOSE

35 inch (889 mm) long, housing drain, lower

1шт.

7

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - straight,, Incl Ref 8 and 9

2шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

10

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

90 degree, 1-7/16-12 face seal x 1-1/16-12 inch adj O-ring, Includes: Ref. 11 and 12

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

13

1979932C1

HYD TUBE

TUBE case drain

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

15

1979936C1

HOSE

16-1/2 inch (420 mm) long, housing drain, upper

1шт.

16

1979953C3

HOSE,25.4mm ID x 717mm L

27-7/8 inch (706 mm) long, forward lower pressure

1шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

18

1979928C1

TUBE

forward pressure, not shown

1шт.

18

1541756C2

HYD TUBE

TUBE forward pressure, with power guide axle

1шт.

19

1347124C2

HOSE,25.4mm ID x 550mm L

21-5/8 inch (550 mm) long, forward pressure, upper

1шт.

20

201-907

CAP,1-3/16" - 12 ORFS

If used, Includes Ref. 21

2шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22

1979941C1

SUPPORT

hydrostatic tube, rear

1шт.

23

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

24

231-5146

FLANGE NUT,3/8"-16

6шт.

33

1347034C1

SUPPORT

BRACKET tube support, rear

1шт.

34

1347033C1

SUPPORT

BRACKET tube support, front

1шт.

35

1347156C1

SHIN

CLAMP half, tube

6шт.

36

187935C1

STRIP

SLEEVE pressure tube clamp

9шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

38

425-105

NUT,5/16"-18, G5

6шт.

39

492-11031

LOCK WASHER,5/16"

6шт.

40

1979761C1

SPACER

3/8" ID x 1

6шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

S97224

CLAMP

CLAMP split flange, 1 inch

16шт.

44

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

32шт.

45

492-11044

LOCK WASHER,7/16"

32шт.
