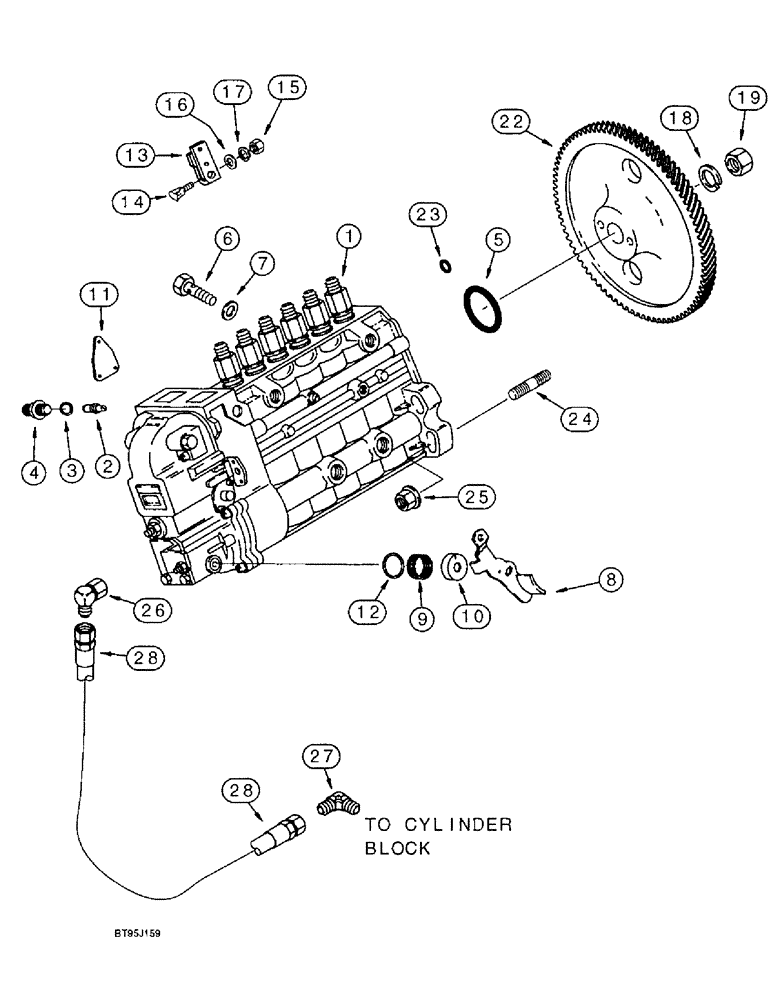

Запчасти Case IH 1666 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE (02) - FUEL SYSTEM

1

J923480

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, new, Includes: Ref. 2 thru 19

1шт.

1

JR923480

REMAN-INJECTION PUMP

Assembly fuel, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC923480

CORE-INJECTION PUMP

Return Number

1шт.

1

JC913339

CORE

Return Number, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

A77720

PIN

timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Replaces 933222R1

1шт.

4

J912888

PLUG

timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J912886

VALVE

overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER valve sealing

1шт.

8

J910979

LEVER

pump shutoff

1шт.

9

J912890

SPRING

lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING spring return

1шт.

11

A71110

GASKET

mounting, replaces A46322

1шт.

12

680187C1

O-RING,2.5mm Thk x 9mm ID

sealing, special, shutoff shaft

1шт.

13

1808728C1

LEVER

throttle control

1шт.

14

1808822C1

THUMB SCREW,M6 x 26mm

BOLT throttle lever

1шт.

15

829-1306

NUT,M6, Cl 10

Replaces 1806312C1

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

892-11006

LOCK WASHER,M6

1шт.

18

A77775

LOCK WASHER

lock

1шт.

19

A41852

LOCK NUT

hex, self-locking

1шт.

22

J912614

GEAR

fuel pump

1шт.

23

J916284

O-RING

sealing, fuel injection pump

1шт.

24

J915036

STUD

pump mounting

4шт.

25

J902662

FLANGE NUT

hex flange, 10 mm, fuel pump to timing gear housing

4шт.

26

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

27

J915172

FITTING

ELBOW 90 degree, 7/16-20 straight thread x 1/8 inch PT, pump lubrication

1шт.

28

J906747

HOSE,6.35mm ID x 508mm L

Lubrication

1шт.
