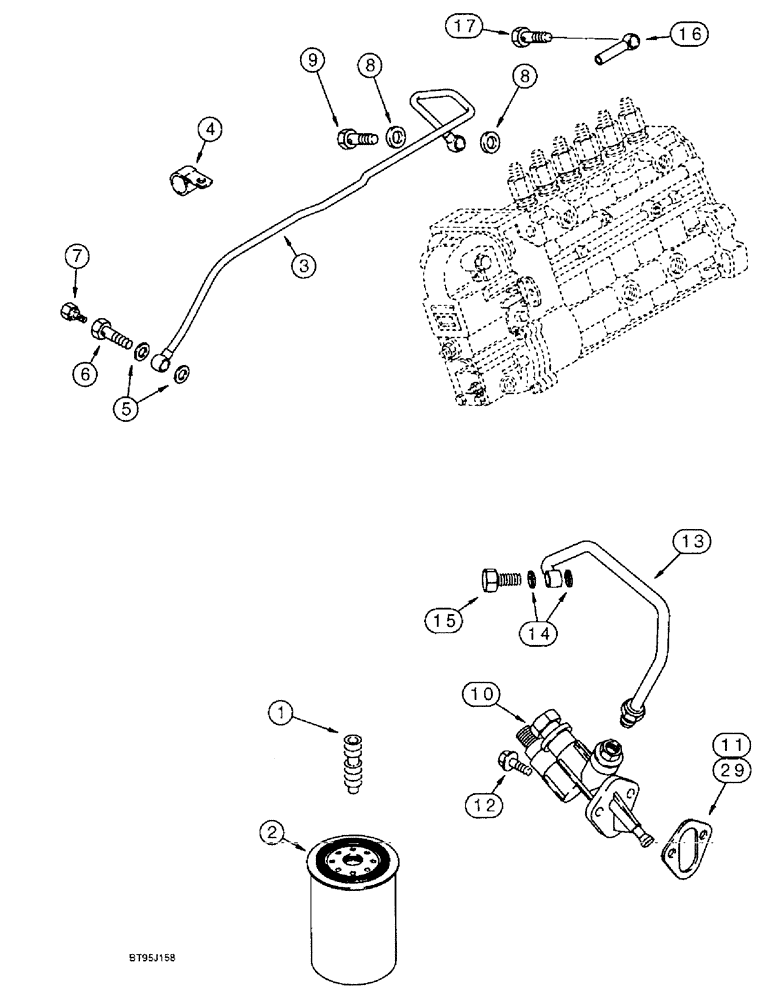

Запчасти Case IH 1666 (3-04) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE (02) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter, replaces J903845

1шт.

2

J903640

FILTER, FUEL

1шт.

3

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

fuel supply

1шт.

4

J914711

CLIP

CLAMP P-type

1шт.

5

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY, banjo hex, special, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

8

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

2шт.

9

J907541

BANJO BOLT

BOLT banjo connector

1шт.

10

J917998

PUMP

fuel lift and transfer, see J926764 repair kit below

1шт.

11

J923054

GASKET

mounting, fuel transfer pump, replaces J914304

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

13

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

supply

1шт.

14

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

15

J916361

BANJO BOLT

banjo connector, 12 - 1.5 x 24 mm

1шт.

16

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

17

J912886

VALVE

overflow

1шт.

J920544

GASKET KIT

repair, seal, lift pump, no longer available, for service order J926764 kit shown below, Includes: Ref. 18 thru 22

1шт.

18

NSS

NOT SOLD SEPARAT

VALVE check, not shown

2шт.

19

NSS

NOT SOLD SEPARAT

GASKET check valve, not shown

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

3шт.

22

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

1шт.

J926764

GASKET KIT

transfer pump repair, replaces J923615, Includes: Ref. 23 thru 28

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE check, not shown

1шт.

24

NSS

NOT SOLD SEPARAT

GASKET check valve, not shown

2шт.

25

NSS

NOT SOLD SEPARAT

SEAL O-ring, not shown

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL O-ring, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

SEAL O-ring, not shown

1шт.

28

NSS

NOT SOLD SEPARAT

VALVE check, not shown

1шт.

29

J923054

GASKET

mounting, fuel transfer pump, replaces J914304

2шт.
